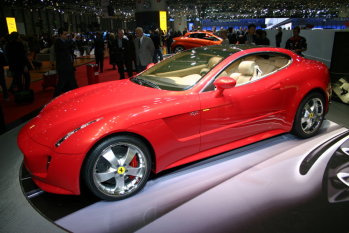

Giorgetto Giugiaro is presenting his unique Ferrari GG50 showcar, which he created last year to commemorate his 50 years in the automotive design business, at the Geneva Motor Show for its European debut. Based around the Ferrari 612 Scaglietti platform,V12-engine and mechanicals the concept sportscar made its world debut last October at the Tokyo International Motor Show where it was one of the Japanese show's star attractions.

Earlier this year, the fully-working Ferrari GG50, as it was entitled, made its North American debut during the Detroit Motor Show. Now, at the prestigious Swiss show, it is the turn of Europeans to be able to examine close-up this individual showcar.

Ferrari GG50

Based around the Ferrari 612 Scaglietti, as directly requested by Ferrari President Luca di Montezemolo, the GG50 is a fully working and viable sportscar, which effectively and visually embodies Giugiaro's traditional styling trademarks.

Giorgetto Giugiaro painted in glowing colours this great adventure last autumn: “To mark 50 years of activity in the world of car design, I decided to sculpture a Ferrari to the memory of that great adventure and enjoy it with my family”. Giorgetto Giugiaro fashioned and commissioned a project that spilled into stretching horizons, in that he became concurrently – for the first time ever – supplier and customer of the new car.

Rather than being a spellbound step into tomorrow, the ultimate outcome of all this is an expression of today – a Ferrari graced by his initials, GG, followed by the digit 50 by way of epitomizing his debut into the world of car design in September 1955 – imbued by an imposing, unmistakable artistry capturing skyhigh ergonomics and outstanding space on board. Created along the lines of the Ferrari 612 Scaglietti, and retaining the same basic mechanics, the Ferrari GG50 is a little shorter in length than the original model, with a fastback tail conspired to conceal the underlying hatchback lid. The rear seatbacks can be folded down to create, thanks to the new fuel tank, a flat trunk platform one meter and 40 centimeters deep. All that was checked and verified with the Ferrari Technical Direction support.

The idea of creating a Ferrari to mark 50 years of activity in the world of car design took shape in September 2004 at the Paris Motorshow, where Giorgetto Giugiaro talked about this flight of fantasy directly with the President and CEO of Ferrari Luca di Montezemolo who cued the model around which the vehicle concept should be developed: the 612 Scaglietti 12 cylinder four-seater coupé. Montezemolo also gave Giugiaro two inputs: although no restrictions would be posed on creative-thinking, the vehicle must be perfectly in keeping with the Ferrari tradition and transmit a sensation of compactness, even being highly enjoyable. Giugiaro started to work on the project in February 2005, sketching entirely by hand – a practice followed over the last 50 years – the physical design of the vehicle in 1:10 scale from four orthogonal views, marking out the side, nose, tail and bird’s view: all sketched in 2H lead pencil on tracing paper using a universal chalkboard.

This two-dimensional rendering is typical of Giugiaro's method and is today pursued by Fabrizio Giugiaro, Italdesign Giugiaro Styling Area Director. According to this procedure, the rendering is translated into math surfaces in order to proceed to a 3D validation of the project by means of 1:1 scale dynamic visualization in the Italdesign-Giugiaro Virtual Reality Design Centre. Once the Virtual Reality green light was given, seeing onset was full-scale plaster model milling, as duly completed in April. Along with the 1.1 scale mock-up model put in place to test out the ergonomics and ease-of-access interior concepts, starting to undergo construction at the beginning of June was the running prototype.

Retaining the wheelbase at 2.95 meters, the Ferrari GG50 spans 4 meters and 81 centimetres in length vs.4.90 for the Scaglietti. Giorgetto Giugiaro reinterpreted the front just a little, pruning the front overhang by 2 centimetres. On the other hand, he revolutionized the rear section, nipping the overall length of the car by 9 centimetres. In the Scaglietti, the fuel tank is positioned vertically, behind the rear seating. For the Ferrari GG50, Italdesign engineers were asked by Giugiaro to concentrate on positioning the new 95-liter fuel tank entirely below the trunk platform line. With the rear seatbacks folded down, the redesigned fuel tank layout translates into a flat trunk platform one meter and 40 centimetres deep. Compared to the 240-liter loading capacity of the Scaglietti, the loading capacity offered by the GG50 stretches to 270 litres, which, with the rear seatbacks folded down, increases to 500 litres. In a strategic intent to take full advantage of the bolt-on loading space driven through by the new fuel tank layout, Giorgetto Giugiaro decided to use a proper hatchback lid which is hinged to the roof’s edge.

From a structural standpoint, Italdesign engineers had to redesign the rear cross-member which, in the Scaglietti, joins the suspension domes atop the fuel tank. Likewise, also added to the roof’s edge was a cross-member, joined to two reinforced risers, to stand the hatchback trunklid’s weight.


The more instantly recognisable makeover is the tail’s sleeker shape, where the rear profile has been nipped 7 centimetres. Although being 9 centimetres shorter than the Scaglietti, the Ferrari GG50 appears instantly to be even more compact than the series-production car as a result of the subtly rounded nose and tail angles. “In bird’s view, all cars look like a rectangle”, explains Giugiaro. “As a consequence, the dimensions are perceived optically as being the same as the maximum length”. In the GG50, however, Giugiaro rounded to an extreme the loop between the cowl and the front wheelhouse, applying the same treatment to the rear.

“When viewed three-quarterwise, this also enhances the look of the car optically, making the car appear leaner and bolder. In a nutshell, rather than having a fender lip that clearly defines the bodyside edge, a seamless line flows toward the centrepoint where the two extremities meet”. From a structural architecture standpoint, the GG50 relinquishes the
Scaglietti’s third compartment for a nimbler tail, an instantly recognisable fastback. A very bold statement of performance and design is the general impression perceived. A compact coupé, ready to bite the grit, with the rear seats so well concealed as to be perceived as a classic two-seater. The bodyside is immaculate. The air intake – providing cool air for front brake system cooling – meanders along almost in parallel with the ground line and creates a bas-relief that fades into the rear.

As for the more stunning Ferrari cars, the belt line arches in correspondence to the rear wheel highlighting the generous wheelhouse’s taut muscle. The boldly tapered rear profile gains form and shape from the side view, in that emerging from the tail-end mirror are the dual tail lamps, which, of course, are round. Absolute simplicity in the front as well. With the low-slung Ferrari grille looking just as fresh and fun loving as ever, the nose flares forward in the centre with two generous and vertical air intakes unfolding to the side, where the fog lights are housed. The headlamps are vertical, a stroke of pen that translates into a black crescent moon housing XENON headlight beams and dimmers, and the turn

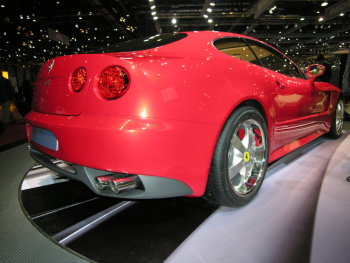

signal indicators. The long bonnet is creased almost imperceptibly by a V, which makes the volume more plastic without, however, disrupting the natural flow of the lines. Likewise simple is the tail, with the lower section, housing the chrome dual exhausts, black-painted to reduce the overall sensation of height. Incorporating LED technology, the round dual lamps are asymmetric, with those to the side playing a master role. Set at the forefront, the chrome Prancing Horse. The crest of the trunk rises towards the center contouring a small spoiler to provide extra downforce at the rear and insure the car is stable at high speeds.

Practically imperceptible is the hatchback door. The GG50 seems to have a classic trunklid hinged under the rear window. However, the rear window as a whole lifts up along with the trunklid and, as such, is a proper hatchback door. In bird’s view, the elements that dominate are two: the boldly tapered four extremities and the photochromic roof, which, with the fender, creates a seamless transparent surface.

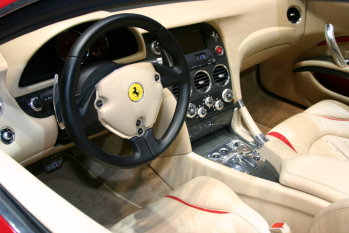

Whilst the GG50’s exterior drew breath from a universal chalkboard, its interior was fashioned as the mock-up progressed. In addition to retaining as mentioned earlier the wheelbase, also retained was the interior appearance of the Scaglietti. However, when working on the fullsize mock-up, Giugiaro and his son Fabrizio, decided to eliminate the closed-in feeling back in there by sloping the rear window at the side. “Getting in and out of a 2+2 coupé is never an easy feat, because access is directly proportional to the door’s length, which cannot be stretched to the infinite. Indeed, the GG50 door’s structural frame mesmerizes the Scaglietti’s door framework. However, enhanced headroom has been gained by sloping the rear window, thereby making it much easier to get in and out of the car than expected. Just try getting in and out of the car and you’ll see how easy all this can be”, explains Giugiaro. One other thought of mind went to the driver’s right hand. Used by tradition to change gear, drivers do not use their right hand as much as before due to the F1 gear change fitted on the steering wheel. As such, repositioned to the right-hand side of the dashboard are certain commands and controls once found by tradition on the left-hand side, such as the lights and, not least, the handbrake, in this exercise, electric. Taken as a whole, the instrumentation is the same as the one to be found in the series-production car. Brand new is the dashboard, fitted in the centre of which is the AVIC – X1R satellite navigator by Pioneer.

Fitted inside the central console, whether between the front or rear seats, are two generous storage pockets, duly protected by a flap. Decidedly unusual for a Ferrari in these times, the door panels, featuring a large glovebox, have a horizontal natural beech insert. Covered in beige leather, the seats use the structural frames found in the production car. The upper section of the rear seatbacks can be folded down, thereby creating a flat loading platform at the same height as the new fuel tank.

Ferrari GG 50 Technical Specification: Dimensions: Length 4,810 mm; Width 1,950 mm; Height 1,347 mm; Wheelbase 2,950 mm; Front track 1,677 mm; Rear track 1,643 mm; Front overhang 838 mm; Rear overhang 1,022 mm; Trunk Size: 270 litres; Trunk Size with rear seats folded down 500 litres; Engine: V12 – 5,748 cc; BHP (bhp/rpm) 540NHP at 7250; Drivetrain: Rear-wheel drive; Transmission: 6-speed automatic with sequential mode; Front Tyres: Bridgestone 245 35 ZR20; Rear Tyres: Bridgestone 305 35 ZR20; Brakes: Brembo; Wheels: ATP Tecnoforming 20-inch; Colour: Red
