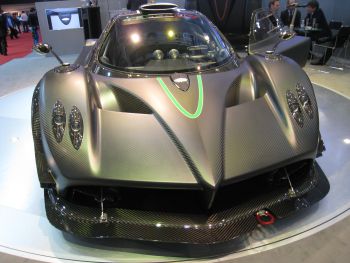

Pagani Zonda R

The spark was set by an Italo-American customer, enthusiast and already proud owner of 3 Zondas. He describes the project this way: “The thought has been on my mind for quite some time, but I am not interested in racing”. The Zonda R is born with full liberty. The target: the ultimate performance at the racetrack without any implications of rules, except for safety, where no compromise is allowed. In September 2006 the first drawings were ready, but it was crucial to have the support of Mercedes-AMG for a high revving engine with a power output of 750hp, dry sump, light and with a low centre of gravity. The basis was the self supporting engine of the mighty CLK GTR, which has dominated the GT championships. Even at constant racing pace the engine would have to cover over 5,000 km before servicing.

The Zonda R is a car designed from scratch, with only 10% of the Zonda F components carried over. The suspension forged in Avional, a new Pagani six speed transversal sequential gearbox, carbon fibre monocoque, aeronautical four pump fuel tank are only part of the equation. The wheelbase has grown by 47mm, the overall length by 394mm and the track is increased by 50mm. The bodywork and aerodynamics have been studied to offer maximum downforce.

Even though built for the track, the project would not have received kick off, if the quality and finish of the car and its details was not up to the level of the Pagani road cars. One of the first cars to be delivered however will be kept in a living room, designed by Pagani and built with the same materials as the Zonda F, beautifully textured carbon fibre, avional, titanium, inconel and other state of the art materials. Additionally it features a bespoke HiFi System that will allow the customer to listen to the sound of this car at Le Mans and the Nürburgring. This Zonda is purpose made for track use, without restrictions of any competition rules or homologation, with the only exclusion of the passengers’ integrity, where no compromise is tolerated according to our philosophy and state-of-the-art safety measures are featured.

The engine is built by the racing specialists at Mercedes AMG, where the championship winning DTM cars are born. From it’s engine the Zonda R borrows the basic architecture including an ingenious dry sump allowing a low centre of gravity. This self-supporting engine with 750 hp at 8000 rpm and 710 Nm of torque carries a lightweight carbon fibre high performance intake system, a racing multiple disc sintered clutch and Formula 1 style exhaust system, hydroformed in Inconel 625 and ceramic coated for optimal heat dissipation. The power unit combined with a 6 speed transversal manual sequential synchronised gearbox is designed to satisfy the most ambitious drivers.

The central carbon chassis incorporates a roll cage and a rubber racing fuel tank with 4 fuel pumps and quick refuel filler like on GT race cars. The wheelbase has been increased by 47mm to offer the best stability. The front and rear subframes are brand-new, built to accommodate a new suspension geometry, produced in avional. The magnesium forged rims with central wheel nut and a quick pneumatic lifting system allows fast and effortless changes of the slick tyres.

The new bodywork has been honed to offer elevated downforce even in low speed corners. The longer front bonnet with flaps, closed underbody and the rear overhang with the adjustable rear wing and race derived diffuser translate into aerodynamic efficiency. The car displays and logs information about the amount of downforce that the car is generating at each moment. Combined with the adjustable wings the driver can easily find the best setup for each track. The interior is designed to accommodate the driver and passenger in bespoke seats, built to offer the best support, when the G-forces from the vehicle dynamics come into question. The Digitek instrumentation provides the essential information and a sophisticated telemetry allows through a variety of sensors to monitor every single component of the car.
