17.11.2011 NEW FIAT PANDA PACKS IN TECHNOLOGY

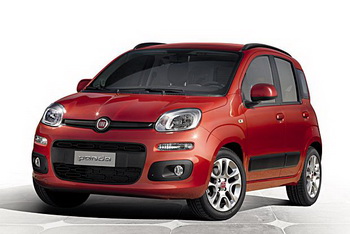

NEW FIAT PANDA 2012

The new Panda incorporates technology that would normally be found in bigger cars and with its accessibly both in terms of its price and its running costs, Fiat hopes it can be a family's "main car" especially in such uncertain economic times.

NEW FIAT PANDA 2012

Start&Stop switches the engine off temporarily and then restarts it in order to reduce fuel consumption and CO2 emissions. Specially designed for driving in the city, the system automatically switches off the engine when traffic conditions require the vehicle to stop (red lights, tailbacks and temporary stops, for example), keeping all of the functions that guarantee comfort and safety on board active (lights, climate control system, radio and windscreen wipers).

To drive in city traffic the new Panda offers the "Blue&Me TomTom2 LIVE" device that combines the advantages of an infotainment system which is integrated and connected to the net with those of a portable navigator, opening the doors to connectivity.

Another innovation amid the electric power steering devices, the system fitted on the new Panda offers customers an extra opportunity: to choose between two different calibration programs. The former assures maximum feeling between driver and car, and is therefore ideal on mixed extra-urban roads. The latter, which is selected by pressing the "City" button in the middle of the dashboard, lightens steering and is ideal for city driving and parking manoeuvres.

Blue&Me is an innovative electronic module which allows pairing of up to 5 mobile phones featuring Bluetooth that are within the system's operating range (approximately 5 metres) with the car. The interaction methods with the system make use of the microphone in the roof light, the controls on the steering wheel and the monochromatic display in the control panel.

NEW FIAT PANDA LOW SPEED COLLISION SYSTEM

The "Low Speed Collision Mitigation" system entails innovative active safety contents capable of recognising obstacles in front of the car and of braking automatically when the driver fails to avoid them. Depending on certain parameters (road surface conditions, dynamics and trajectory of the vehicles, position of the obstacles and condition of the tyres), the intervention of the LSCM system can avoid impact completely ("Collision Avoidance") or minimise the consequences of a possible impact ("Collision Mitigation").

The new Panda incorporates technology that would normally be found in bigger cars and with its accessibly both in terms of its price and its running costs, Fiat hopes it can be a family's "main car" especially in such uncertain economic times.

Specifically the new Panda offers technological solutions which are straightforward to use and satisfy both the concrete needs of everyday mobility as well as the growing social awareness of the environment and safety issues. These include Start&Stop, Gear Shift Indicator (GSI), ecoDrive and the ECO mode of the TwinAir engines. These acronyms are now part of the standard terminology that Fiat has contributed to create and develop and which are now grouped together in "Air Technologies". Aside from these standard features, the new Fiat is also equipped with two highly valuable devices which buyers would only expect to find on cars from superior segments, namely: "Low Speed Collision Mitigation" and "Blue&Me TomTom 2 LIVE".

As confirmation of the protective spirit of the new Panda, "Low Speed Collision Mitigation" will be available upon request by the end of the new car's first year. It is an innovative braking system which detects obstacles in the vicinity - at speeds of less than 30 km/h - and brakes automatically.

The small Fiat also proves confident in its natural habitat: the city. This is obviously thanks to its compact size, to the range of engines and to the suspension layout, in addition to devices which change life on board a car. These include the Dualdrive electric power steering with "City" function fitted as standard which lightens steering and proves ideal in the city and for parking manoeuvres.

In addition to its lively spirit, a true "city car" also needs to afford low fuel consumption and to respect the environment. In this context, the new Panda is unrivalled, owing to the implementation of a large number of systems designed to increase the vehicle's dynamic efficiency: from Start&Stop to the Gear Shift Indicator (GSI), ecoDrive and the ECO mode of the TwinAir engines. Technical words which are now part of the standard terminology that Fiat has contributed to create and develop and which are now grouped together in "Air Technologies", the new brand that identifies the low environmental impact technologies which team eco-friendliness with driving satisfaction.

Communicating and travelling: this is what the new Panda promises and delivers thanks to the multi-award-winning platform, Blue&Me in its latest version, the "Blue&Me TomTom 2 LIVE", which teams the benefits of a built-in live infotainment system with those of a portable navigation system.

So, with the new Panda, Fiat aims to raise the stakes further to prove that it is leading the technological evolution of the super-compact segment, where a large part of history carries its name: from the first 600 to the 500, from the 126 to the first Panda, from the Cinquecento to the Seicento, from the second generation Panda (2003) to the new 500 launched in 2007.

Panda is protective

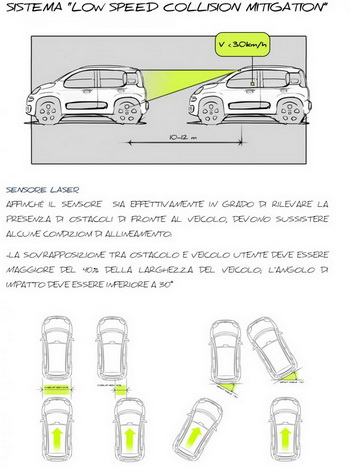

LSCM (Low Speed Collision Mitigation)

The "Low Speed Collision Mitigation" system entails innovative active safety contents capable of recognising obstacles in front of the car and of braking automatically when the driver fails to avoid them. Depending on certain parameters (road surface conditions, dynamics and trajectory of the vehicles, position of the obstacles and condition of the tyres), the intervention of the LSCM system can avoid impact completely ("Collision Avoidance") or minimise the consequences of a possible impact ("Collision Mitigation").

The sophisticated device of the new Panda offers two additional functions: Automatic Emergency Braking (AEB) and Prefill. The former, while respecting the driver's wishes and leaving full control of the car in his/her hands, is triggered by emergency braking after carefully assessing the position and speed of the obstacles, the speed of the vehicle (below 30 km/h), lateral acceleration, the steering angle and pressure on the accelerator pedal and its variation. The Prefill function, on the other hand, prefills the braking system in order to allow prompter response both when the Automatic Emergency Braking system is triggered as well as when the driver brakes.

In detail, the system consists of a laser sensor fitted in the windscreen, a user interface and a control unit which communicates with the ESC (Electronic Stability Control) system. Based on the same principle as those used in astronomy to measure distances between satellites, the laser sensor detects the presence of obstacles in front of the vehicle when certain alignment conditions be present: the overlapping of the car and obstacle must be more than 40% than the width of the vehicle while the angle of impact must be less than 30°.

The control unit of the LSCM system is designed to activate automatic braking, following a request by the laser sensor, in addition to being designed to request a reduction in the torque towards the engine control unit if the accelerator pedal has not been released. Lastly, the control unit keeps the car braked for 2 seconds after stopping, to allow the driver to resume normal driving safely. The goal of the LSCM system is to guarantee maximum safety in all conditions of use, so in certain conditions (unfastened seatbelts, temperatures of ≤3°C, reversing), different triggering logics are activated.

Panda is respectful

Start&Stop

All TwinAir petrol engines and the 75 HP 1.3 MultiJet II offer the Start&Stop device as standard. It switches the engine off temporarily and then restarts it in order to reduce fuel consumption and CO2 emissions. Specially designed for driving in the city, the system automatically switches off the engine when traffic conditions require the vehicle to stop (red lights, tailbacks and temporary stops, for example), keeping all of the functions that guarantee comfort and safety on board active (lights, climate control system, radio and windscreen wipers). Switching off the engine when the car is stopped prevents consuming fuel needlessly (up to -15% over an urban cycle), reduces emissions and improves acoustic comfort. The device can be activated/deactivated using the button on the dashboard.

Gear Shift Indicator (GSI)

The Gear Shift Indicator (GSI) device is a genuine "co-pilot" which discreetly suggests to the driver the best time to change gear in order to minimise fuel consumption. For example, the GSI may suggest shifting up, by means of an indication on the control panel, to allow the engine to run at a lower speed or to downshift to make best use of the available torque.

"ECO" mode

To underscore the eco-compatibility qualities of the revolutionary 85 HP 0.9 TwinAir Turbo engine, cars which are equipped with this afford the opportunity to select an ecological operating mode by pressing an "ECO" button on the dashboard. This selection consists in a specific mapping which, by reducing the torque by 45 Nm (from 145 to 100 Nm), allows a less high-performance drive which focuses on minimising consumption (in addition, the invitations by the Gear Shift indicator to switch to a higher gear are multiplied).

eco:Drive

The eco:Drive system is an easy to use "zero cost" solution that supports the driver in improving his or her driving efficiency and reduces fuel consumption and emissions. Indeed, eco:Drive is the first and only system able to offer drivers customised tips based on their driving style.

Using the eco:Drive application, available for download free of charge on the Fiat website teamed with the Blue&Me system, users can collect their driving information and store them on a USB storage device. When the USB storage device is inserted into their PC, the eco:Drive system sends the data to the Fiat server, which processes it to measure driving efficiency based on four parameters: acceleration, deceleration, gear shifts and speed. The scores allocated for each of these four areas contribute to the definition of the eco:Index that summarises driving quality with a score from 1 to 100. eco:Drivers receive personalised tips on how to improve their performance in each area and consequently their eco:Index. They can follow their progress in time, set goals and check their savings through an application on their own PC.

All eco:Drive users are part of eco:Ville, an on-line community that receives data on all the savings made through the commitment of eco:Drivers. To date, approximately 64,000 users have saved a total of 4,300 tonnes of CO2 by improving the efficiency of their personal driving styles.

Available on a broad range of Fiat Group Automobiles cars and commercial vehicles, the software offers specific features to evaluate savings associated with the use of Start&Stop technology and CNG. In addition, eco:Drive Fleet is also available, a dedicated fleet version that allows companies and fleet managers to control fuel consumption and CO2 emissions - and consequently costs - for their company fleet. With eco:Drive, Fiat therefore set out to think not only of its own products but also its own users by encouraging them to help reduce automotive transport-related emissions.

Panda is confident

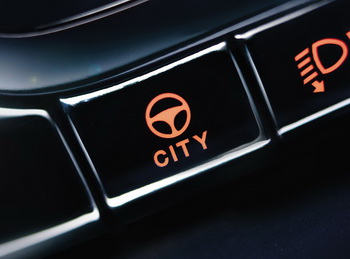

Dualdrive electric power steering system with "city" button

The new Panda offers Dualdrive - the electric power steering system featuring two user-selected operating logics - as standard on the entire range. Electric power steering makes it possible to adapt the steering response to the car's speed: the faster you drive, the more assistance is reduced and the effort on the steering wheel increases, thereby guaranteeing a more accurate drive.

Another innovation amid the electric power steering devices, the system fitted on the new Panda offers customers an extra opportunity: to choose between two different calibration programs. The former assures maximum feeling between driver and car, and is therefore ideal on mixed extra-urban roads. The latter, which is selected by pressing the "City" button in the middle of the dashboard, lightens steering and is ideal for city driving and parking manoeuvres. To guarantee maximum customer safety even when driving on roads at high speed with the "City" device enabled, above 35 km/h, the two programmes have the same degree of power assistance and therefore ensure a steering wheel "response" which is appropriate for high speeds.

Panda is ingenious

Granted many prestigious international awards, the Blue&MeTM system is the most popular infotainment device, as demonstrated by the more than two million units sold world-wide. The new Panda will feature both the first level Blue&MeTM (including hands-free with Bluetooth interface and sophisticated voice recognition, USB Port, MP3 player and SMS interpreter) as well as the latest development of the device, "Blue&Me TomTom2 LIVE" - upon request.

All the strong points of the Blue&Me system

Blue&Me is the result of the collaboration between Fiat Group Automobiles and Microsoft. The partnership signed in July 2004, with the long term aim of designing innovative telematic systems for cars, has given rise to a product that is now established in the market - with 2 million devices sold - that makes use of technology that is fully integrated in perfect harmony with the user as the name suggests.

Based on Windows Mobile for Automotive, the device is based on an open, constantly developing system that can be updated and whose contents are flexible and can be modulated. In fact, Fiat Group Automobiles and Microsoft, with the support of Magneti Marelli, offer a platform that can be upgraded for most mobile phones, music players or other personal devices, with the enormous benefit of the possibility of being constantly able to follow market innovations and maintain perfect integration with the car. All at an affordable price, in completely safety and in accordance with traffic laws.

Blue&Me is an innovative electronic module which allows pairing of up to 5 mobile phones featuring Bluetooth that are within the system's operating range (approximately 5 metres) with the car. The interaction methods with the system make use of the microphone in the roof light, the controls on the steering wheel and the monochromatic display in the control panel.

Blue&Me guarantees maximum safety and is simple to use. The voice command system, its full integration with the controls on the steering wheel and with the information in the instrument display allow the customer, with a Bluetooth® mobile phone, to use it even if it is in their jacket pocket or their handbag, without ever having to take their hands off the steering wheel. Not to mention that the highly developed voice recognition system allows immediate interaction because no voice learning stage is required and incoming text messages can also be interpreted.

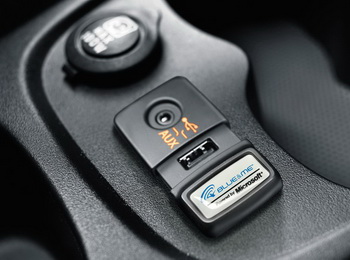

By connecting a digital device to the USB port or AUX-IN, featured in the tunnel, it is possible to listen to digital music in MP3, WMA, AAC and WAV format, recorded on digital audio players and/or USB devices.

This system makes the following functions available to the customer in an efficient and intuitive way: use of their own mobile phone in hands-free mode, without having to use the phone itself, which can stay in a pocket or in a bag in the boot (calling names in the phonebook using voice control with independent user recognition); Transfer of their phonebook to Blue&Me in the car and reading it through the display in the control panel; Interaction with the display using the steering wheel controls to manage numbers called, incoming calls, incoming text messages, refuse call, redial last number called, etc.; Listening to a music collection stored on a USB device, media player and last generation Apple devices, in the most common formats (MP3, WAV, WMA, AAC). The information about the tracks being played is available on the on-board radio.

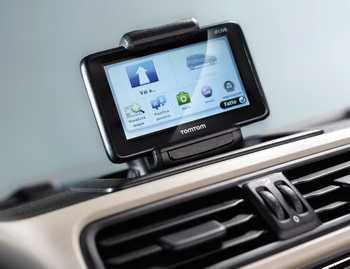

"Blue&Me TomTom2 LIVE"

To drive in city traffic the new Panda offers the "Blue&Me TomTom2 LIVE" device that combines the advantages of an infotainment system which is integrated and connected to the net with those of a portable navigator, opening the doors to connectivity.

"Blue&Me TomTom2 LIVE" allows Panda customers to use mobile phones and media players in total safety without ever removing their hands from the steering wheel, and provides an absolutely unique and distinctive navigation experience, built into the dashboard and offering the most accurate traffic information updated in real time and real time feedback on driving style.

The default position for this PND (Portable Navigation Device) is in the middle of the dashboard and allows the safe installation of the specific support, in addition to guaranteeing power to the navigation device without external wiring. In addition, in terms of Bluetooth connectivity, thanks to Blue&Me, phone, media player and car information can be displayed and controlled on the navigation device's touch screen.

"Blue&Me TomTom2 LIVE" is at the cutting edge when compared to the latest portable navigation devices available on the market: Capacitive 4.3" HD touchscreen display with iPhone-type HMI; Detailed maps: 45 European countries; Best route definition: helps you choose the best route by analysing traffic conditions collected on a 24h statistical basis.

"Blue&Me TomTom2 LIVE" is designed to receive the information about the car, detected through connection with the on-board network and then to provide real time information about car use and that of the devices connected to it: Trip computer, Fiat-customised points of interest, phonebook display, Media Player and eco:Drive.

"Blue&Me TomTom2", in those countries where the service is available, also offers LIVE services in real time featured in the latest generation TomTom portable navigation devices: Speed camera: mobile speed camera locations, including reports by other users, fixed mobile camera locations and Tutor camera locations along the trip. It helps you achieve a safe and relaxed driving experience, while saving money; Google: local points of interest updated by Google Local Search: to find anything, from restaurants to flower shops. Just type in a key word; it finds corresponding points and allows the device to show you how to get there; Weather: current weather forecasts and over the next five days, making planning your trip possible according to the most recent forecasts; TomTom HD Traffic: detailed traffic information, queues, road blocks and works in progress updated every 2 minutes, suggesting alternative routes for your trip. Traffic information is collected also using info from mobile phones and TomTom navigation devices present along the route, reprocessed by the TomTom station; Cost: The "Blue&Me TomTom2 LIVE" device is supplied with a year of free Live services, including roaming and data traffic. From the second year, the services are available for purchase from TomTom Home.

"Blue&Me TomTom2" is available in two versions (LIVE and NON-LIVE): depending on the availability of the service in the Country of purchase. Customers can purchase the device only through Fiat dealers in their country of residence. Compared with the after-market services available in most chain stores, the "Blue&Me TomTom2 LIVE" solution offered by Fiat presents a considerable advantage for customers in addition to the integration with the Blue&Me hands-free system and with the car's electronics. Lastly, "Blue&Me TomTom2" can be upgraded by linking it to your PC with the USB cable and visiting the My TomTom section on the website.
