Fiat

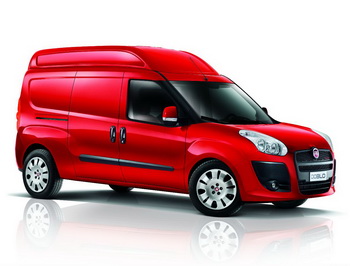

						Professional’s Doblò Cargo van range has been expanded
						with the introduction of the New Doblò XL version.
						Following on from the
						Doblò Work Up launched last year, the New Doblò XL aims
						to strengthen and broaden the appeal of the Doblò Cargo
						range. The Doblò XL’s combination of a long wheelbase
						and high roof provides a load volume of 5.0 m3 and a
						payload of 1,000kg, providing customers with a new
						proposition previously unavailable in this segment.
						The new version’s high
						roof integrates into the body providing an aerodynamic
						vehicle. The rear doors provide access to the load
						compartment allowing customers to fully utilise the 5.0
						m3 load volume.
						The new Doblò XL Cargo
						versions are powered by a choice of three Euro 5
						turbodiesel engines: 1.6 MultiJet 105 hp, 1.6 MultiJet
						90hp MTA and 2.0 MultiJet 135hp. Combi versions will be
						available with the 2.0 MultiJet 135hp only.
						As with the current
						range, the new Doblò XL offers outstanding features such
						as best-in-class for payload and volume and
						best-in-class for load compartment dimensions (length
						and height).
						The new XL version
						will sit between the Purpose Built Van and Small Panel
						Van segments and is likely to attract customers from the
						latter as it offers the same load capacity and payload
						(1 Ton) but at a lower price.
						With its increase in
						load volume, ease of loading, low fuel consumption,
						reduced operating costs, safety and comfort, the Doblò
						XL will appeal to a  variety of customers including
						utilities, service vehicles (with ladder stored
						internally), converters and wheelchair-accessible
						transport for example.
						Fiat Professional’s
						Doblò Cargo Bi-Link suspension ensures a smooth ride,
						and its range of environmentally-friendly Euro
						5-compliant engines makes it cleaner and cheaper to run.
						The New Doblò XL will
						be available in Cargo N1, Combi N1 and M1 versions and
						as with the existing Doblò Cargo and Combi range, the
						Doblò XL will be available in two trim levels. In
						addition, Combi M1 versions will have side airbags and
						ESP as standard equipment.
						Options include
						Blue&Me with steering wheel controls, Blue&Me TomTom
						navigator and eco:Drive Professional software.
						NEW DOBLÒ XL
						SPECIFICATIONS
						Main features
						on Standard trim level:

							- ABS with EBD

							- Central door
							locking

							- Driver’s airbag

							- 12V front plug-in
							socket

							- Electric windows

							- Radio/CD with
							high-performance loudspeakers

							- Reach and
							rake-adjustable steering wheel

							- Reach and
							rate-adjustable seats

							- Ceiling storage
							shelf

							- Panelled bulkhead

							- Nearside/offside
							sliding doors

							- Lockable fuel cap

							- Side rubbing
							strips

							- Normal size spare
							wheel

							- Heated diesel
							filter

							- 16-inch 195/60
							wheels


						Additional
						features on SX trim level:

							-  Remote
							control central locking (Cargo)

							- Electric rear
							windows (Combi)

							- Fog lights

							- Passenger seat
							storage in cushion

							- Radio/CD/MP3 High

							- Passenger airbag
							(Combi)

							- Soundproofed
							bulkhead (Cargo)

							- Height-adjustable
							drivers’ seat & lumbar support

							- PVC load floor
							covering (Cargo)

							- Body colour
							exterior door mirrors


						Additional
						features on Combi M1 vs N1:





								|
								  |

								Cargo |

								Combi N1/M1 |


								|
								Rear door (mm) |

								  |


								|
								Width |

								1231 |

								1231 |


								|
								Height |

								1455 |

								1455 |


								|
								Sliding side door
								(mm) |

								  |


								|
								Width |

								700 |

								700 |


								|
								Height |

								1175 |

								1175 |


								|
								Load compartment
								(mm) |

								  |


								|
								Length |

								2170 |

								1300 |


								|
								Width min-max |

								1518-1714 |

								1191-1291 |


								|
								Width between wheelarches |

								1230 |

								1230 |


								|
								Height |

								1550 |

								1495 |


								|
								Height to parcel shelf |

								NA |

								600 |


								|
								Rear loading height (unladen) |

								545 |
								  |


								|
								Load compartment
								capacity (m3) |

								  |


								|
								Volume |

								5.0 |

								1.05* |


								|
								Engines |

								  |


								|
								Engine |

								105 MultiJet |

								90 MultiJet Comfort Matic |

								135 MultiJet Power |


								|
								Euro |

								Euro 5 |

								Euro 5 |

								Euro 5 |


								|
								Fuel |

								diesel |

								diesel |

								diesel |


								|
								Displacement (cm3) |

								1598 |

								1598 |

								1956 |


								|
								Power hp (kW) at rpm |

								105 (77) 4000 |

								90 (66) 4000 |

								135 (99) 3500 |


								|
								Torque kgm (Nm) at rpm |

								29.6 (290) 1500 |

								20.4 (200) 1500 |

								32.6 (320) 1500 |


								|
								  |

								Cargo |

								Combi N1/M1 |


								|
								Engine |

								105 MultiJet |

								90 MultiJet Comfort Matic |

								135 MultiJet Power |


								|
								Weights |

								  |


								|
								Kerb weight (kg) |

								1460 |

								1460 |

								1500 |

								1600 |


								|
								Payload including driver (kg) |

								1000 |

								1000 |

								1000 |

								800/615 |


								|
								GVW (kg) |

								2460 |

								2460 |

								2500 |

								2400/2215 |


								|
								Maximum tow-able weight (kg) |

								1300 |

								1300 |

								1500 |

								1500 |


								|
								Maximum front axle load (kg) |

								1200 |

								1200 |

								1200 |

								1200 |


								|
								Maximum rear axle load (kg) |

								1450 |

								1450 |

								1450 |

								1450 |
