06.09.2018 NEW MODEL: LAMBORGHINI AVENTADOR SVJ

LAMBORGHINI AVENTADOR SVJ 2019
LAMBORGHINI AVENTADOR SVJ 2019
LAMBORGHINI AVENTADOR SVJ 2019
LAMBORGHINI AVENTADOR SVJ 2019
LAMBORGHINI AVENTADOR SVJ 2019
LAMBORGHINI AVENTADOR SVJ 2019

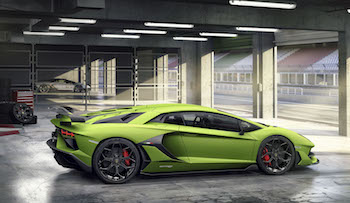

Lamborghini has unveiled its new Aventador ‘special series’, dubbed the SVJ, which improves the power, performance and dynamics of the Italian supercar and will be produced to a run of 900 units.


LAMBORGHINI AVENTADOR SVJ63 2019
LAMBORGHINI AVENTADOR SVJ63 2019
LAMBORGHINI AVENTADOR SVJ63 2019

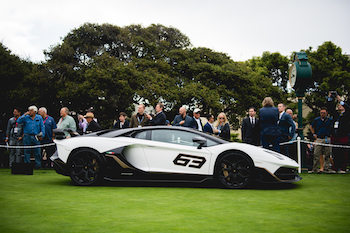

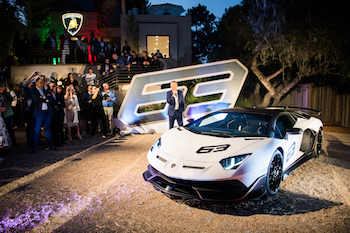

A special edition, named the SVJ 63, was unveiled on the concept lawn at the Pebble Beach Concours d’Elegance. Its name comes from Lamborghini’s founding year of 1963: produced in a unique configuration, it demonstrates the use of carbon fibre and will be made in an additional limited number of just 63 units.

Lamborghini has unveiled its new Aventador ‘special series’, dubbed the SVJ, which improves the power, performance and dynamics of the Italian supercar and will be produced to a run of 900 units.

The new Aventador SVJ, where SV historically stands for Superveloce - meaning ‘superfast’ - takes the ‘Jota’ suffix, denoting its track and performance superiority: the Aventador SVJ has already claimed its position as the Nürburgring-Nordschleife production car record holder, completing the 20.6 km lap in just 6:44.97 minutes.

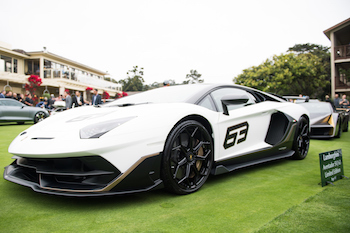

A special edition, named the SVJ 63, was unveiled on the concept lawn at the Pebble Beach Concours d’Elegance. Its name comes from Lamborghini’s founding year of 1963: produced in a unique configuration, it demonstrates the use of carbon fibre and is made in an additional limited number of just 63 units.

“The Aventador SVJ is an innovative car and represents the absolute pinnacle of our super sports car product range,” said Lamborghini Chairman and Chief Executive Officer, Stefano Domenicali. “The challenge to Lamborghini designers and engineers was to improve the purest essence of the Lamborghini super sports car, drawing on every inspiration from a space ship to a jet fighter: all the most exceptional examples of super-fast, super-athletic, aerodynamic superiority. The Aventador SVJ takes another step into the future, shaping the potential for super sports car development.”

Improved performance

With its optimised power plant making it the most powerful series production V12-engined car produced to date by Lamborghini, the SVJ features an increase in power to 770 hp (566 kW) at maximum 8,500 rpm.

The SVJ outputs 720 Nm of torque at 6,750 rpm, while a dry weight of just 1,525 kg gives the SVJ a weight-to-power ratio of 1.98 kg/hp.

The SVJ accelerates from standing to 100 km/h in 2.8 seconds and from 0 to 200 km/h in 8.6 seconds.  A top speed of more than 350 km/h is complemented by a braking distance of 100 km/h to 0 in 30 meters.

Aerodynamics

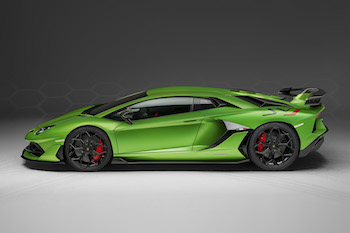

The SVJ has been enhanced in appearance compared to the Aventador S. The main goal in design was a significant downforce improvement compared to the previous Aventador SV: +40% on both axles with an improved drag coefficient -1%.

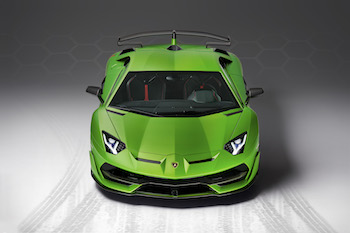

From the front the car is wider: a new front bumper with integrated side fins features a new air intake and highlights the inclusion of Aerodinamica Lamborghini Attiva (ALA), Lamborghini’s patented active aerodynamics technologies.

The disconnected front splitter continues the impression of a floating component, while providing a channel for airflow. A tri-dimensional air outlet on the hood directs airflow, improves both drag and downforce, and clearly alludes to the aerodynamic purpose of the SVJ’s design. The upper body aerodynamic optimization has contributed 70% to the total downforce improvement in the SVJ over the SV.

The SVJ’s rocker is entirely new, adopting the ‘Y’ theme found in Lamborghini cars while also resembling shapes found in jet fighters. The bigger side air intakes and the new front side fins reduce drag and improve overall cooling. An improved underbody aero design with vortex generators works in conjunction with front diffusers and a new, extreme-design rear diffuser, together with divergent fins, contributes 30% to the total downforce improvement.

The rear wing of the SVJ has been designed for best aerodynamic efficiency, based on a new air foil; an optimized ALA 2.0 system; and side winglets to reduce turbulence while providing high downforce on the straight as well as in high speed corners.

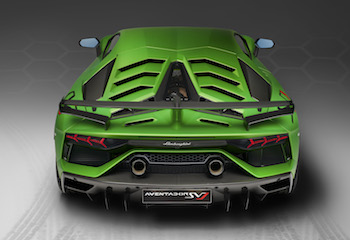

At the rear of the car the position of the high-mounted naked exhaust resembles those found on extreme motorbikes, as well as saving weight due to its proximity to the engine: the exhaust system itself is also lighter. The Omega-shape rear bumper incorporates a massive new diffuser that contributes to downforce, while a new high-mounted rear wing is produced entirely in carbon fibre with its integrated ALA system.

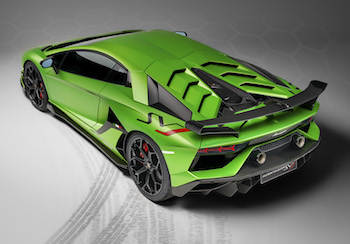

The new rear engine bonnet has been redesigned for the SVJ: it is made from lightweight carbon fibre and removable via quick release clips in a reference to motor racing. It also adopts the ‘Y’ theme that reveals the updated V12 power plant below, while accenting the car’s high-performance characteristics. Super-light ‘Nireo’ aluminium rims are designed specifically for the SVJ, saving weight and contributing to the extreme dynamism of the car. Optional ‘Leirion’ aluminium rims with ‘Y’ and hexagonal details are also available. The Italian flag detail on the side wing is a reminder of the Lamborghini’s Italian super sports car heritage.

Aerodinamica Lamborghini Attiva 2.0

Lamborghini’s patented ALA system was first seen on the Huracán Performante, and has been developed for the Aventador SVJ, now ALA 2.0, including new optimized air inlets and aero channel designs. The system has been re-calibrated considering the enhanced vehicle’s lateral accelerations.

The ALA system actively varies aero load to achieve high downforce or low drag, depending on dynamic conditions. Electronically-actuated motors open or close active flaps in the front splitter and on the engine bonnet that steer the air-flow, front and rear.

Utilising Lamborghini Dinamica Veicolo Attiva 2.0 (LDVA 2.0) with improved inertial sensors that govern all the car’s electronic systems in real time, the ALA system flaps are activated in less than 500 milliseconds to ensure the best aerodynamic set-up of the car in every driving condition.

When ALA is off, the active flaps are closed, generating the desired high downforce for high speed cornering and full brake conditions. When ALA switches to ‘on’ the front flaps are opened, reducing air pressure on the front spoiler and directing air flow via an inner channel and through the specially-shaped vortex generators on the underside of the car. This drastically reduces drag and optimizes conditions for maximum acceleration and top speed.

When ALA is off the rear flaps are also closed, allowing the rear wing to act as a traditional fixed wing. Stability is enhanced in high speed cornering and full braking by creating maximum vertical downforce. When ALA is ‘on’ the flaps on the engine bonnet open in order to stall the wing for improved drag in high speed conditions.

In addition, the rear wing’s inner air channel is split right and left, allowing aero vectoring for high speed cornering. Depending on the direction of the turn, the LDVA 2.0 instructs ALA to be switched on in either the right or left side of the wing, increasing downforce and traction on the inner wheel and counteracting the load transfer in rolling conditions. This in turn optimises the chassis’ momentum, requiring a reduced steering angle and improving the car’s overall dynamic stability.

The aero vectoring technology in the SVJ has been further developed to improve the aero-loading effects on the inner wheel by 30% compared to the original system.

Engineering technology

The enhanced powertrain features a new titanium intake valve with a new-shape intake runner and length, with a modified intake cylinder head duct for higher flow coefficient. The new, lightweight exhaust system reduces backpressure as well as producing the most emotive sound, and the optimized seven-speed Independent Shifting Road (ISR) gearbox has been calibrated for the car’s increased performance in terms of both power and torque.

The Aventador SVJ’s vertical, lateral and longitudinal dynamics have been re-engineered in LDVA 2.0, with algorithms fully integrated within ALA 2.0 to reflect the exceptional downforce generated and optimize performance: the result of significant R&D investment and collaboration with the CFD team.

The SVJ’s suspension has been reworked, providing higher mechanical and aerodynamic grip. Anti-roll bar stiffness has been improved by 50% compared to the Aventador SV, compensating against roll and improving aero efficiency. A higher damping force range, increased by 15% over the SV, and Lamborghini’s Magneto Rheological Suspension (LMS) has been recalibrated to improve body and wheel control with a focus on track performance.

The Aventador SVJ’s rear-wheel steering (LRS) is further engineered to exploit the aero load in every environment, providing exceptional stability in high speed conditions and improving agility in cornering to enhance average speed in all dynamic conditions.

The Aventador SVJ’s steering has also been developed to provide the feedback demanded in high-performance track and racing environments. The rebalanced power steering reflects the specific aero load and tires, and the Lamborghini Dynamic Steering (LDS) is recalibrated to further improve steering precision and natural feedback.

The Lamborghini SVJ’s four-wheel drive system has improved torque split to maximize traction and agility, with the higher stability of the SVJ allowing a further 3% of torque to be sent to the rear axle compared to the SV. The rear-wheel steering has been developed to further improve the car’s stability while reducing braking distances, particularly in combined braking/turning conditions such as high-speed cornering. ESC has been enhanced for improved cornering and driver experience in extreme handling conditions, and ABS has been specifically tuned for the improved grip provided by the tires and ALA system.

New Pirelli P Zero Corsa tires have been specifically developed, according to Lamborghini’s brief for the SVJ: the tires provide higher vertical stiffness to accommodate the SVJ’s higher downforce, as well as provide a high grip level to enhance overall vehicle performance.

Featuring a specific tread design, the tyres are designed to optimise performance on both road and track. Optional street-legal Pirelli P Zero Trofeo R tyres can be mounted specifically for track use.

A driver’s car

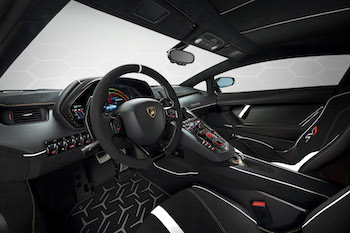

With Lamborghini’s three driving modes, Strada, Sport and Corsa, as well as the EGO option allowing the driver to further customise the driver’s preferences for car set-up, the cockpit features Kombi graphics on the TFT digital dashboard display as well as showing live status of the ALA functions.

The Navigation System and Infotainment System including AppleCarPlay come as an option free of charge, allowing the cockpit’s occupants to manage voice activated communications and entertainment from personal Apple devices.

The Lamborghini telemetry system is an optional specification: recording lap times and track performance as well as trip data, the telemetry system is especially appealing to the owner who wants to take his car on track.

The first customers will take delivery of the new Aventador SVJ at the beginning of 2019 priced at 349,116 euros excluding taxes.

Photos: Lamborghini Aventador SVJ
