TECHNICAL SPECIFICATION
| Alfa GTV |
2.0 T. Spark |
| |
| No. of cylinders, layout |
4, in line, front, transverse |
| Bore x stroke (mm) |
83 x 91 |
| Capacity (cc) |
1970 |
| Compression ratio |
10 : 1 |
| Max. power output EC: kW (bhp) |
110 (150) |
| at rpm |
6300 |
| Peak torque EC: Nm (kgm) |
181 (18.5) |
| at rpm |
3800 |
| Timing (control) |
2 OHC, hydr. tappets and elect. variable valve
timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch ME 7.3.1 MPI electronic injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
70 |
| Generator (A) |
120 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 510.5 with 5 speeds |
| 1st speed |
3.545 |
| 2nd speed |
2.238 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.946 |
| 6th speed |
- |
| Reverse |
3909 |
| Final drive ratio |
3562 |
| Wheels |
| Rims |
7J X 16" |
| Tyres |
205/50 R 16 87Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
11.2 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
284 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
4 / 2 |
| Length (mm) |
4.299 |
| Width (mm) |
1.776 |
| Height, unladen (mm) |
1.318 |
| Front/rear track unladen (mm) |
1506 / 1499 |
| Wheelbase (mm) |
2540 |
| Front/rear overhang (mm) |
989 / 770 |
Boot capacity VDA (dm3)
with compact wheel/with tyre repair kit |
110 / 155 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1370 |
| Performance |
| Top speed (km/h) |
215 |
Acceleration (1 adult + 30 kg):
- 0 to 1000 m (s) |
29.4 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
13.3 |
| - extraurban cycle |
6.8 |
| - combined cycle |
9.2 |
| Emissions control |
| CO2 emissions (g/km) |
220 |
| Alfa GTV |
2.0 JTS |
| |
| No. of cylinders, layout |
4, in line, front, transverse |
| Bore x stroke (mm) |
83 x 91 |
| Capacity (cc) |
1970 |
| Compression ratio |
11.3 : 1 |
| Max. power output EC: kW (bhp) |
121 (165) |
| at rpm |
6400 |
| Couple maxi CEE : Nm (mkg) |
206 (21.0) |
| at rpm |
3250 |
| Peak torque EC: Nm (kgm) |
2 OHC, hydr. tappets and elect. variable valve
timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch MED 7.1.1 MPI direct injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
70 |
| Generator (A) |
120 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 510.5 with 5 speeds |
| 1st speed |
3.909 |
| 2nd speed |
2.238 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.919 |
| 6th speed |
- |
| Reverse |
3.909 |
| Final drive ratio |
3.733 |
| Wheels |
| Rims |
7J X 16" |
| Tyres |
205/50 R 16 87Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
11.2 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
284 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
4 / 2 |
| Length (mm) |
4299 |
| Width (mm) |
1776 |
| Height, unladen (mm) |
1318 |
| Front/rear track unladen (mm) |
1506 / 1499 |
| Wheelbase (mm) |
2540 |
| Front/rear overhang (mm) |
989 / 770 |
| Boot capacity VDA (dm3) with compact wheel/with tyre repair
kit |
110 / 155 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1370 |
| Performance |
| Top speed (km/h) |
220 |
| Acceleration (1 adult + 30 kg): - 0 to 1000 m (s) |
29.2 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
13.3 |
| - extraurban cycle |
6.8 |
| - combined cycle |
9.2 |
| Emissions control |
| CO2 emissions (g/km) |
220 |
| Alfa GTV |
3.2 V6 24V |
| |
| No. of cylinders, layout |
6, V-shape, front, transverse |
| Bore x stroke (mm) |
93 x 78 |
| Capacity (cc) |
3179 |
| Compression ratio |
10.5 : 1 |
| Max. power output EC: kW (bhp) at rpm |
176 (240) |
| at rpm |
6200 |
| Peak torque EC: Nm (kgm) |
289 (29.4) |
| at rpm |
4800 |
| Timing (control) |
2 OHC, per row, hydraulic tappets and variable
valve timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch ME 3.1 MPI electronic injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
60 |
| Generator (A) |
140 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 530.6 with 6 speeds |
| 1st speed |
3.500 |
| 2nd speed |
2.235 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.971 |
| 6th speed |
0.818 |
| Reverse |
3.545 |
| Final drive ratio |
3.733 |
| Wheels |
| Rims |
7.5J X 17" |
| Tyres |
225/45 ZR 17 91Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
12.0 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
305 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
4 / 2 |
| Length (mm) |
4299 |
| Width (mm) |
1776 |
| Height, unladen (mm) |
1318 |
| Front/rear track unladen (mm) |
1530 / 1508 |
| Wheelbase (mm) |
2540 |
| Front/rear overhang (mm) |
989 / 770 |
| Boot capacity VDA (dm3) with compact wheel/with tyre repair
kit |
110 / 155 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1445 |
| Performance |
| Top speed (km/h) |
255 |
Acceleration (1 adult + 30 kg):
- 0 to 1000 m (s) |
25.8 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
19.9 |
| - extraurban cycle |
9.3 |
| - combined cycle |
13.2 |
| Emissions control |
| CO2 emissions (g/km) |
315 |

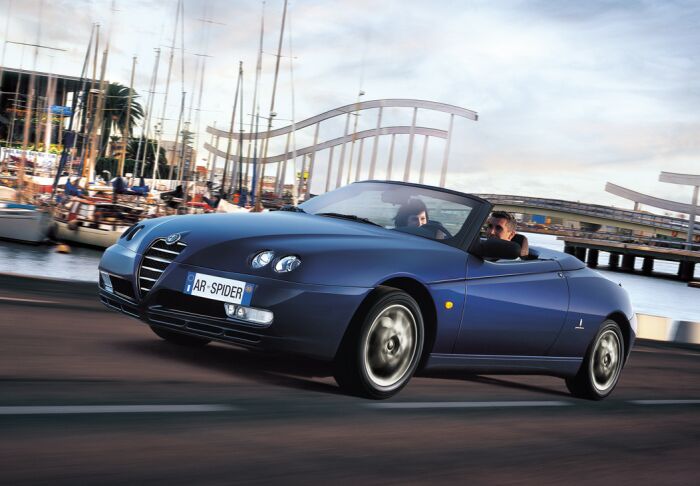

| Alfa Spider |
2.0 T. Spark |
| |
| No. of cylinders, arrangement |
4, in line, front, transverse |
| Bore x stroke (mm) |
83 x 91 |
| Capacity (cc) |
1970 |
| Compression ratio |
10 : 1 |
| Max. power output EC: kW (bhp) |
110 (150) |
| at rpm |
6300 |
| Peak torque EC: Nm (kgm) |
181 (18.5) |
| at rpm |
3800 |
| Timing (control) |
2 OHC, hydr. tappets and elect. variable valve
timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch ME 7.3.1 MPI electronic injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
70 |
| Generator (A) |
120 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 510.5 with 5 speeds |
| 1st speed |
3.545 |
| 2nd speed |
2.238 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.946 |
| 6th speed |
- |
| Reverse |
3.909 |
| Final drive ratio |
3.562 |
| Wheels |
| Rims |
7J X 16" |
| Tyres |
205/50 R 16 87Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
11.2 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
284 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
2 / 2 |
| Length (mm) |
4299 |
| Width (mm) |
1776 |
| Height, unladen (mm) |
1315 |
| Front/rear track unladen (mm) |
1506 / 1499 |
| Wheelbase (mm) |
2540 |
| Front/rear overhang (mm) |
989 / 770 |
Boot capacity VDA (dm3)
with compact wheel/with tyre repair kit |
110 / 147 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1405 |
| Performance |
| Top speed (km/h) |
210 |
| Acceleration (1 adult + 30 kg): - 0 to 1000 m (s) |
29.9 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
13.3 |
| - extraurban cycle |
6.8 |
| - combined cycle |
9.2 |
| Emissions control |
| CO2 emissions (g/km) |
220 |
| Alfa Spider |
2.0 JTS |
| |
| No. of cylinders, arrangement |
4, in line, front, transverse |
| Bore x stroke (mm) |
83 x 91 |
| Capacity (cc) |
1.970 |
| Compression ratio |
11.3 : 1 |
| Max. power output EC: kW (bhp) |
121 (165) |
| at rpm |
6400 |
| Peak torque EC: Nm (kgm) at rpm |
206 (21.0) |
| at rpm |
3250 |
| Timing (control) |
2 OHC, hydr. tappets and elect. variable valve
timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch MED 7.1.1 MPI direct injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
70 |
| Generator (A) |
120 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 510.5 with 5 speeds |
| 1st speed |
3.909 |
| 2nd speed |
2.238 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.919 |
| 6th speed |
- |
| Reverse |
3.909 |
| Final drive ratio |
3.733 |
| Wheels |
| Rims |
7J X 16" |
| Tyres |
205/50 R 16 87Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
11.2 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
284 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
2 / 2 |
| Length (mm) |
4299 |
| Width (mm) |
1776 |
| Height, unladen (mm) |
1315 |
| Front/rear track unladen (mm) |
1506 / 1499 |
| Wheelbase (mm) |
2540 |
| Overhang (mm) Front/rear |
989 / 770 |
Boot capacity VDA (dm3)
with compact wheel/with tyre repair kit |
110 / 147 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1405 |
| Performance |
| Top speed (km/h) |
215 |
| Acceleration (1 adult + 30 kg): - 0 to 1000 m (s) |
29.7 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
13.3 |
| - extraurban cycle |
6.8 |
| - combined cycle |
9.2 |
| Emissions control |
| CO2 emissions (g/km) |
220 |
| Alfa Spider |
3.2 V6 24V |
| |
| No. of cylinders, arrangement |
6, V-shape, front, transverse |
| Bore x stroke (mm) |
93 x 78 |
| Capacity (cc) |
3179 |
| Compression ratio |
10.5 : 1 |
| Max. power output EC: kW (bhp) |
176 (240) |
| at rpm |
6200 |
| Peak torque EC: Nm (kgm) |
289 (29.4) |
| at rpm |
4800 |
| Timing (control) |
2 OHC, per row, hydraulic tappets and variable
valve timing (toothed belt), 4 valves per cylinder |
| Fuel feed |
Bosch ME 3.1 MPI electronic injection |
| Electrical equipment (12 V) |
| Battery: capacity (Ah) |
60 |
| Generator (A) |
140 |
| Transmission |
| Drive |
front |
| Gearbox: |
C 530.6 with 6 speeds |
| 1st speed |
3.500 |
| 2nd speed |
2.235 |
| 3rd speed |
1.520 |
| 4th speed |
1.156 |
| 5th speed |
0.971 |
| 6th speed |
0.818 |
| Reverse |
3.545 |
| Final drive ratio |
3.733 |
| Wheels |
| Rims |
7.5J X 17" |
| Tyres |
225/45 ZR 17 91Y |
| Steering |
| Steering box |
rack and pinion with power steering |
| Turning circle between kerbs (m) |
12.0 |
| Suspension |
| Front |
independent, MacPherson type, with lower wishbones
and anti-roll bar |
| Rear |
independent, multilink arms with aluminium
alloy frame, coil springs, hydraulic shock absorbers and anti-roll bar |
| Braking system |
hydraulic servo with independent double crossover
circuit and vacuum brake servo, standard Bosch 5.3 ABS system with four
channels and active sensors and EBD electronic brakeforce distributor |
| Brakes D (disc) front ventilated |
| Front: dia. (mm) |
305 |
| Rear: dia. (mm) |
240 |
| Dimensions |
| No. of seats / No. of doors |
2 / 2 |
| Length (mm) |
4299 |
| Width (mm) |
1776 |
| Height, unladen (mm) |
1315 |
| Front/rear track unladen (mm) |
1530 / 1508 |
| Wheelbase (mm) |
2540 |
| Front/rear overhang (mm) |
989 / 770 |
Boot capacity VDA (dm3)
with compact wheel/with tyre repair kit |
110 / 147 |
| Capacities - Weights |
| Fuel tank (litres) |
70 |
| DIN kerb weight (kg) |
1470 |
| Performance |
| Top speed (km/h) |
242 |
Acceleration (1 adult + 30 kg):
- 0 to 1000 m (s) |
25.8 |
| Fuel consumption as per EC directive 1999/100
(l/100 km): |
| - urban cycle |
19.9 |
| - extraurban cycle |
9.3 |
| - combined cycle |
13.2 |
| Emissions control |
| CO2 emissions (g/km) |
315 |
|
|
