27th March 2003

new models:  Fiat Stilo Multiwagon Van


Fiat Stilo Multiwagon Van

ENGINE 1.9 JTD 80 bhp 1.9 JTD 115 bhp
Outfit ACTUAL ACTUAL/ACTIVE
No. cylinders, arrangement 4, in line, transverse, front 4, in line, transverse, front
Capacity (cc) 1910 1910
Max power (KW / rpm) 59 / 4000 85 / 4000
Max power (bhp / rpm) 80 / 4000 115 / 4000
Max torque (Nm - kgm / rpm) 196 - 20 / 1500 255 - 26 / 2000
TRANSMISSION
Drive type front, with 5-speed gearbox + reverse front, with 5-speed gearbox + reverse
STEERING
Type electric power steering electric power steering
SUSPENSION
Front Independent, MacPherson, with lower wishbones, double-acting telescopic shock absorbers, antiroll torsion bars
Rear interconnected wheels with torsion beam
BRAKES - D (disc)
Front D 284 x 22 mm (ventilated) D 284 x 22 mm (ventilated)
Rear D 251 x 10 mm D 251 x 10 mm
WHEELS
Tyres 195/65 R 15 195/65 R 15
DIMENSIONS (mm)
Wheelbase (mm) 2600 2600
Length (mm) 4516 4516
Width (mm) 1756 1756
Height* (mm) 1571 1571

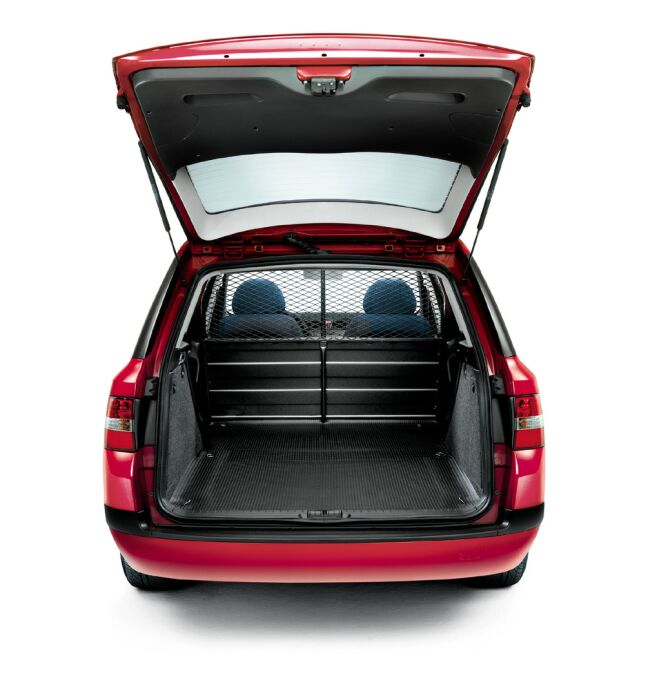

Load compartment:
Working length (mm) 1682 1682
Max/min working width (mm) 1442 1442
Width between wheelarches (mm) 1137 1137
Working height (mm) 945 945
Load compartment ground clearance 537 537
Working volume (dm3) 1600 1600
WEIGHTS - CAPACITIES
DIN kerb weight (kg) 1390 1405
Payload including driver (kg) 460 570
Total fully laden weight (kg) 1850 1975
Towable weight (kg) 1300 1300
Tank capacity (litres) 58 58
PERFORMANCE
Top speed (km/h) 170 190
Fuel consumption (l/100 km)
Urban 7,5 7,5
extra-urban 4,6 4,6
combined cycle 5,6 5,6
CO2 emissions (g/km) 149 149

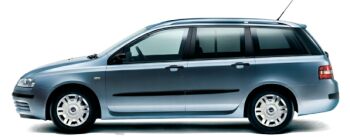

click here to view this image of the new Fiat Stilo Multiwagon Van in high resolution

<<<
