28th May 2002

new models: Fiat Multipla 2002

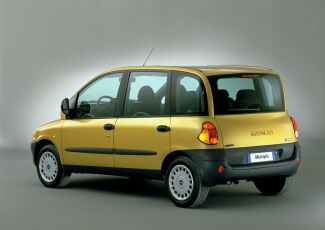

new Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images

the eco-friendly new Fiat Multipla GpowerThe revolutionary Fiat Multipla MPV has undergone its mid-life facelift offering a mildy re-worked interior, new fatures and italso now comes with a new low environmental impact engine (with dual fuel system, petrol and LPG) which joins the two methane engines currently available. The interiors of the new versions due to go on sale at the end of May have been changed: new design cloth for SX versions, a new velvet-like trim for ELX versions and the option of a PVC facia instead of a cloth facia on both.

The Multipla now offers 13 colour shades, of which five are new: Indy Green, Pareo Yellow, Artemis Green, Antarctic Blue and Canary Blue. The suspension has been improved on all versions and one-touch electric windows have been adopted on the driver's window. Higher specification versions (ELX) now come with a new lumbar adjustment control, a tailgate with electric lock release and darkened rear windows. Body-coloured bumpers and number plate holders now come as standard.

The new Fiat Multipla offers enhanced safety. All versions come with rear disc brakes. Latest-generation sensors modulate airbag intervention according to passenger weight and mass while optional window bags drop down over the windows to safeguard occupants' heads in case of side impact. These offer even more protection than that afforded by the sidebags.
The seats offer something new too. The rear seats come with head-restraints that allow a better view during parking manoeuvres. The backrests also ensure better containment. The Fiat Multipla is fitted with ISOFIX attachments so that child seats can be attached easily and safely.
A wide range of options means customers can equip their Multipla to suit their own requirements. Apart from the items already mentioned, options include a footboard for easy access to the rear seats, a new phone aerial, anti-obstruction electric windows, new design alloy wheels and leather-trimmed gear knob and steering wheel. The steering wheel may be fitted with controls for the radio, now available also with a single CD player.

The Multipla offers a range of telematic options: It can be fitted as an option with three levels of CONNECT, an infotelematic tool that acts as an on-board assistant and puts you in contact with the world of services offered by Targasys.

Three product levels are available:
- the basic level provides: radio, dual band GSM phone, emergency call key and - as an option - an external CD player;
- the second level offers a radio and pictogram satellite navigation system;
- the third, most comprehensive system offers: radio, pictogram navigation system, dual band GSM phone, GPS satellite location and, as an option, an external CD player.

interior of the new Fiat Multipla Gpower ELXThe Fiat Multipla is available in two specification levels, SX and ELX, and can be equipped with four engines: two conventional, the 76 kW (103 bhp) 1.6 Torque 16v and the 85 kW (115 bhp) 1.9 JTD that ensure low fuel consumption, outstanding performance and a balanced, flexible and satisfying drive. Plus two low environmental impact engines, the 'blupower' (methane only) and 'bipower' (with dual methane and petrol fuel system), that are proving to be a big hit with the public.
These last two are now joined by another new clean engine: the Gpower, a petrol and LPG engine. Until recently, vehicles could be converted to run on gas (LPG) only as an aftersales option. Fiat Multipla LPG is, however, manufactured directly in the factory at Arese and marketed through the normal sales network. It is therefore a reliable, certified and guaranteed version.

The choice of LPG does not affect the Fiat Mulitpla's load space: the tank (one or two cylinders, as you prefer) is positioned under the floor outside the passenger compartment. This solution allows you to benefit from a much higher fuel capacity than offered by other cars on the market. The range increases accordingly to 350 km on a single tank and an impressive 620 with the double tank.
The system's strength is its fuel system. The gas is not vaporised but injected into the engine in its liquid state. As with the Bipower engine, the four injectors are specially designed for this fuel and the petrol and LPG fuel systems (both Multipoint) are separate.
These features bring great benefits in terms of handling and performance. Liquid injection allows the amount of LPG injected into the intake duct to be monitored more carefully so that the requisite air-fuel ratio can be obtained more accurately. This also assures greater driving comfort at the transient speeds most common during town driving, i.e. acceleration, braking and stop-go driving. The performances obtained using liquid LPG are on a par with those delivered by a petrol fuel system.
Like methane, LPG (liquid petroleum gas) is a clean fuel and thus meets Fiat's now customary low environmental impact requirements.
The fuel also burns without leaving any of the carbon wastes that sometimes arise when a car runs on petrol. These wastes are responsible for premature wear on the piston rings and power unit wear in general.

The car offers environmental as well as financial benefits. For example, LPG - with methane - is the most economical fuel on the market in Italy: it costs about half as much as petrol. It is not burdened by excess taxation either, because gas conversions are not liable to tax.

The widespread preconception that LPG systems are dangerous is also a myth. The laws governing tank, pipe, valve and device construction are actually very strict. The Fiat Multipla is also protected by a Fire Prevention System (FPS) that protects the LPG system as well as the petrol system. One of its main components is an inertia switch that instantly cuts off the LPG flow in the case of an accident by closing the three solenoids on the tank and in the engine bay. The strength of the tank has also been tried by very severe crash tests. And there is more. The LPG system on the Multipla is equipped with the same diagnostic system present on all Group vehicles and can thus be serviced in any official Fiat service outlet. Because they are produced on a normal assembly line, LPG Multiplas are also subject to all standard production process checks.

The main specifications of the dual petrol and LPG fuel system are as follows:

cylinder capacity: 1596 cc 16 valves Euro 3
maximum power (petrol/LPG): 76 kW at 5750 rpm
maximum torque (petrol/LPG): 145 Nm at 4000 rpm
operation with separate injections inter-connected by a high-speed CAN line
refuelling capacity: petrol = 38 litres, LPG (single cylinder) = 48 litres, LPG (double cylinder) = 86 litres
LPG consumption: town route = 14.2 litres/100 km, out-of-town route = 9.3 litres/100 km, combined route = 11.1 litres/100 km
range (calculated over a mixed + motorway route with a top speed of 130 km/h): with single cylinder = 350 km, with double cylinder = 620 km
exhaust CO2 emissions: 179 g/km


Fiat Multipla BipowerFiat Multipla Gpower ELX

Technical Specification


Engine 1.6 16v Euro 3
  Petrol LPG
No. of cylinders, arrangement 4, in line, front, transverse
Bore x stroke (mm) 80.5 x 78.4
Capacity (cc) 1596
Compression ratio 12.5 : 1
Max. power output EC: kW (bhp) 76 (103)
at rpm 5750
Peak torque EC: Nm (kgm) 145 (14.8)
at rpm 4000
Timing gear (drive) 2 OHC (toothed belt), 4 valves per cylinder, with hydraulic tappets
Fuel system separate petrol and LPG MPI connected to high speed CAN line
Ignition static, electronic, combined with injection
Electrical equipment (12V)
Battery: capacity (Ah) 50
Generator (A) 90
Transmission
Drive front
Gearbox: 1st
2nd
3rd
4th
5th
Reverse
3.909 : 1
2.238 : 1
1.520 : 1
1.156 : 1
0.971 : 1
3.909 : 1
Final drive 4.067 : 1 (61/15)
Wheels
Tyres 185/65 R 15 88 H
Steering
Steering box rack and pinion with power steering
Steering box rack and pinion with power steering
Turning circle between kerbs (m) 11.0
Suspension
Front independent MacPherson type with transverse lower wishbones anchored to an auxiliary cross-beam, offset coil springs and anti-roll bar
Rear independent with tie rods anchored to a subframe, variable rate coil springs and anti-roll bar
Brakes - D (disc)
Front: dia. (mm) D 284 (ventilated)
Rear: dia. (mm) D 251
Bodywork - Dimensions
No. of seats 6
No. of doors 5
Length / Width (mm) 3994 / 1871
Height, unladen (mm) 1700
Wheelbase (mm) 2666
Front/rear track, unladen (mm) 1511 / 1520
VDA luggage capacity (dm3) 385 - 1255
Supplies - Weights
Fuel tank (litres) 38 48 single cylinder - 86 double cylinder
DIN kerb weight (kg) 1400 1400
Max. towable weight (kg) 1000 1000
Performance - Fuel consumption
Speed with engine at 1000 rpm in 5th (km/h) 28.8 28.8
Top speed (km/h) 170 170
Acceleration (s) (2 adults + 20 kg):
- 0 to 100 km/h
- 0 to 1000 m

12.6
34.4

14.2
39.3
Max. gradient negotiable, fully laden (%) 22 22
Fuel consumption - 1999/100 EC directive (l/100 km)
- urban
- out-of-town
- combined

11.4
7.4
8.9

14.2
9.3
11.1
LPG range (km) - mixed + motorway route:
single cylinder
double cylinder

-
-

350
620
CO2 emissions (g/km) 205 179



  Multipla Fiat 100 16v SX - ELX Multipla Fiat 115 JTD SX - ELX
Engine 1.6 16v 1.9 JTD
No. of cylinders, arrangement 4, in line, front, transverse 4, in line, front, transverse
Bore x stroke (mm) 80.5 x 78.4 82.0 x 90.4
Capacity (cc) 1596 1910
Compression ratio 10.5 : 1 18.5 : 1
Max. power output EC: kW (bhp) 76 (103) 85 (115)
at rpm 5750 4000
Peak torque EC: Nm (kgm) 145 (14.8) 203 (20.7)
at rpm 4000 1500
Timing gear (drive) 2 OHC (toothed belt), 4 valves per cylinder, with hydraulic tappets  1 OHC (toothed belt)
Fuel system self-adaptive phased sequential electronic MPI  Unijet (Common Rail) direct injection with electronic control unit, variable geometry turbo and intercooler
Ignition static, electronic, combined with injection by compression
Electrical equipment (12V)
Battery: capacity (Ah) 50 60
Generator (A) 90 100
Transmission
Drive front front
Gearbox: 1st
2nd
3rd
4th
5th
Reverse
3.909 : 1
2.238 : 1
1.520 : 1
1.156 : 1
0.946 : 1
3.909 : 1
3.909 : 1
2.238 : 1
1.444 : 1
1.029 : 1
0.816 : 1
3.909 : 1
Final drive 3.933 : 1 (59/15) 3.353 : 1 (57/17)
Wheels
Tyres 185/65 R 15 88 H  185/65 R 15 88 H
Steering
Steering box rack and pinion with power steering rack and pinion with power steering
Steering box rack and pinion with power steering rack and pinion with power steering
Turning circle between kerbs (m) 11.0 11.0
Suspension
Front independent MacPherson type with transverse lower wishbones anchored to an auxiliary cross-beam, offset coil springs and anti-roll bar
Rear independent with tie rods anchored to a subframe, variable rate coil springs and anti-roll bar
Brakes - D (disc)
Front: dia. (mm) D 284 (ventilated) D 284 (ventilated)
Rear: dia. (mm) D 251 D 251
Bodywork - Dimensions
No. of seats 6 6
No. of doors 5 5
Length / Width (mm) 3994 / 1871 3994 / 1871
Height, unladen (mm) 1670 1670
Wheelbase (mm) 2666 2666
Front/rear track, unladen (mm) 1511 / 1520 1511 / 1520
VDA luggage capacity (dm3) 430 - 1300 430 - 1300
Supplies - Weights
Fuel tank (litres) 65 65
DIN kerb weight (kg) 1300 1370
Max. towable weight (kg) 1200 1300
Performance - Fuel consumption
Speed with engine at 1000 rpm in 5th (km/h) 30.6 41.6
Top speed (km/h) 170 176
Acceleration (s) (2 adults + 20 kg):
- 0 to 100 km/h
- 0 to 1000 m

12.6
34.4

12.2
33.8
Max. gradient negotiable, fully laden (%) 22 24
Fuel consumption - 1999/100 EC directive (l/100 km)
- urban
- out-of-town
- combined

11.1
7.2
9.0

8.0
5.5
6.4
CO2 emissions (g/km) 205 130



  Multipla Fiat 100 16v Bipower SX -ELX Multipla Fiat 100 16v Blupower SX
Engine 1.6 16v 1.6 16v
  Petrol Methane Methane
No. of cylinders, arrangement 4, in line, front, transverse 4, in line, front, transverse
Bore x stroke (mm) 80.5 x 78.4 86.4 x 67.4
Capacity (cc) 1596 1581
Compression ratio 10.5 : 1 12.5 : 1
Max. power output EC: kW (bhp) 76 (103)      68 (92) 70 (95)
at rpm 5750 5750
Peak torque EC: Nm (kgm) 145 (14.8)      130 (13.3) 133 (13.6)
at rpm 4000 4000
Timing gear (drive) 2 OHC (toothed belt), 4 valves per cylinder, with hydraulic tappets 2 OHC (toothed belt), 4 valves per cylinder, with hydraulic tappets
Fuel system self-adaptive phased sequential electronic MPI  self-adaptive phased sequential electronic MPI
Ignition static, electronic, combined with injection static, electronic, combined with injection
Electrical equipment (12V)
Battery: capacity (Ah) 50 50
Generator (A) 90 90
Transmission
Drive front front
Gearbox: 1st
2nd
3rd
4th
5th
Reverse
3.909 : 1
2.238 : 1
1.520 : 1
1.156 : 1
0.971 : 1
3.909 : 1
3.909 : 1
2.238 : 1
1.520 : 1
1.156 : 1
0.971 : 1
3.909 : 1
Final drive 4.067 : 1 (61/15) 4.067 : 1 (61/15)
Wheels
Tyres 185/65 R 15 88 H  185/65 R 15 88 H
Steering
Steering box rack and pinion with power steering rack and pinion with power steering
Steering box rack and pinion with power steering rack and pinion with power steering
Turning circle between kerbs (m) 11.0 11.0
Suspension
Front independent MacPherson type with transverse lower wishbones anchored to an auxiliary cross-beam, offset coil springs and anti-roll bar
Rear independent with tie rods anchored to a subframe, variable rate coil springs and anti-roll bar
Brakes - D (disc)
Front: dia. (mm) D 284 (ventilated) D 284 (ventilated)
Rear: dia. (mm) D 251 D 251
Bodywork - Dimensions
No. of seats 6 6
No. of doors 5 5
Length / Width (mm) 3994 / 1871 3994 / 1871
Height, unladen (mm) 1700 1700
Wheelbase (mm) 2666 2666
Front/rear track, unladen (mm) 1511 / 1520 1511 / 1520
VDA luggage capacity (dm3) 385 - 1255 385 - 1255
Supplies - Weights
Fuel tank (litres) 38      164 216
DIN kerb weight (kg) 1470 1490
Max. towable weight (kg) 1000 1000
Performance - Fuel consumption
Speed with engine at 1000 rpm in 5th (km/h) 28.8 28.8
Top speed (km/h) 168      157 160
Acceleration (s) (2 adults + 20 kg):
- 0 to 100 km/h
- 0 to 1000 m

13.5      16.0
38.1      41.1

15.5
36.0
Max. gradient negotiable, fully laden (%) 22 22
Fuel consumption - 93/116 EC directive (l/100 km)      (m3/100 km) (m3/100 km)
- urban
- out-of-town
- combined
11.5      11.3
7.5      7.3
9.0      8.8
11.1
7.18.5
Methane range (km)
- urban
- out-of-town
- combined
-     325
-      505
-      420
420
650
540
CO2 emissions (g/km) 214      167 162

click here to view high resolution cutaway of Multipla Bipower
click here to view high resolution cutway of Multipla Blupower
click here to view high resolution cutaway of Multipla Gpower
Multipla Bipower
Multipla Blupower
Multipla Gpower
see this image in high resolution
see this image in high resolution
see this image in high resolution

Specifications and Optional Extras


  SX 100 16v Bipower Blupower Gpower JTD 115 ELX 100 16v Bipower Gpower JTD 115

EXTERIOR
Electric door mirrors S -
Fog lamp and headlamp pressure washers O S
Electrically-controlled fold-down door mirrors with demister O S
Double electric sunroof (not available with air conditioner on Bipower and Blupower versions) O O
Alloy wheels with wide tyres O O
Metallic paint O O
Dark rear windows (splintex) - S
Painted bumpers and number plate holder - S
Access step to rear seats (1) O O
INTERIOR
Foldable and removable rear seats S S
Front and rear seats with adjustable reclining backrest S S
Isofix attachments on rear seats S S
Versatility Pack (sliding central rear seat, drawer under front right passenger seat, pouches on rear of backrests), not available with cabinet with thermal compartment O S
Special interior trims - S
Console equipped with electric thermal compartment (5 seats) O O
Comfort Pack (driver seat electric height and lumbar adjustment, rear head-restraints) O S
FUNCTIONAL / ELECTRIC
Manual climate control system S - / S (Bipower)
Climate system with automatic temperature control - S/- (Bipower)
Central locking S S
Front electric windows S S
Rear electric windows (with anti-obstruction system - 1) - O/- (Bipower)
Driver's side electric window with one-touch control S S
Height-adjustable steering wheel S S
Leather steering wheel and gear lever knob (1) - O
Leather steering wheel and gear lever knob with radio controls (1) - O
Fiat CODE S S
Power steering S S
Reversing sensor S S
Luggage compartment Pack (12V power point and parcel rack) S S
Remote control door release - S
Tailgate with electronic lock release  - S
Passenger side courtesy mirror with specific lighting - S
Alarm with remote control O O
Audio Pack (6 speakers + provision for handsfree kit mobile phone with dual function speaker and phone supply lead)  O O
Radio with CD player (single) O O
RDS radio, removable front panel and provision for handsfree kit mobile phone (dual function speaker and phone supply lead) O O
RDS radio, removable front panel, CD-changer and provision for handsfree kit mobile phone (dual function speaker and phone supply lead) O O
Built-in navigator O O
CONNECT level 1 (radio + dual band GSM + SOS + external CD opt.) O O
CONNECT level 2 (radio + pictogram navigator) O O
CONNECT level 3 (radio + pictogram navigator + GSM + GPS + external CD opt.) (1) O O
Additional parking heater (with remote control) O (JTD) O (JTD)
ABS 0 S
FPS (Fire Prevention System) S S
Driver's airbag S S
Double passenger airbag S S
Sidebags O S
Window bags O O
Smart bags 2 S S
Pretensioners on all 3 front seats S S
Central seats (front and rear) with three-point seat-belts S S
S = standard
O = option
- = not available
(1) Available later

Fiat Multipla Hybrid

new Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
click here to view new 2002 Fiat Multipla high resolution images
