1st September 2002

new models: Fiat Scudo

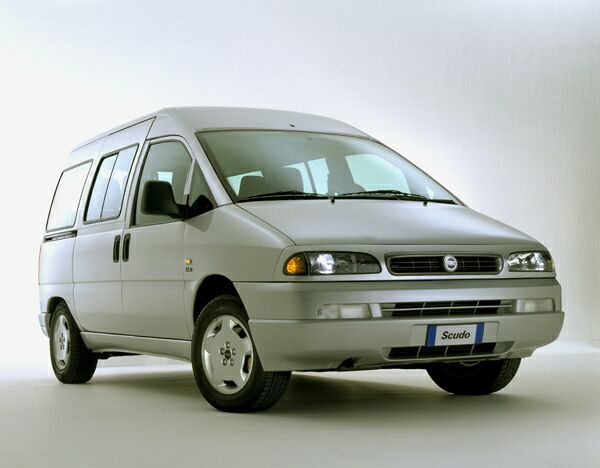

Fiat Scudo van

Fiat have given the Scudo van a mild facelift. Cosmetically the front bumper, headlamps and grille have been reworked, while inside new features include electric windows, central locking, velvet trim and electrically-adjustable door mirrors.

A long wheelbase version is now available fitted with the 2.0 common rail Turbodiesel engine (80 kW/109 bhp) along with an 8-seater deluxe mixed service vehicle with a 100 kW (136 bhp) 2.0 petrol engine and an automatic transmission.

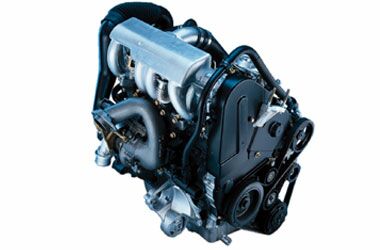

Fiat Scudo van engine

Fiat official press release for revised Scudo launch:

panelled van version:

The Fiat Scudo panel van, is the ideal vehicle for goods transport in or out of town. In addition to being a vehicle with dynamic safety and driving comfort, its 'all forward' mechanical layout, with front drive and engine transversely mounted at front, have made it possible to remove all obstructions from the loading floor. This leaves it perfectly free for the load, since even the spare wheel housing is located under the floor. A wealth of standard specification: halogen lights, rear foglight, reversing light, tinted glass, ceiling light in the loading compartment, twin sliding side doors, double hinged rear doors. The spacious rear doors open to 90 and 180 degrees providing easy access to the loading compartment through an opening that is as wide as 1360 mm at threshold level, 1060 mm at roof level, 1265 mm at midspan. The interior dimensions of the loading compartment are: maximum width of up to 1600 mm, width between wheelarches 1220 mm, height 1415 mm, length 2059 mm. The separation between the cab and the loading compartment is by means of a protective ladder bulkhead on the driver side and a full-width 23 cm partition.

combi version:

Fiat Scudo Combi version is a highly functional, comfortable vehicle that can accommodate 5/6 people. This version is fitted with a central 3-str. padded bench with forward folding back. Twin sliding side doors are standard.

diesel engines:

Driveability, ease of handling, dynamic safety: this is what Fiat Scudo engines can offer, for car-like driving pleasure in terms of performance and ride comfort. The engines, one aspirated diesel and two JTD all feature four cylinder construction, high torque at low revs for excellent pick-up, both on level ground and uphill, combined with less frequent gear changing.

1.9 D
Total displacement 1868 cm3
69 BHP-EEC at 4600 rpm
125Nm-EEC at 2500 rpm
Indirect injection with semi-electronic pump, catalytic converter and EGR..

2.0 JTD 16v
Total displacement 1997 cm3
109 BHP-EEC at 4000 rpm
270Nm-EEC at 1750 rpm
“Common Rail” direct injection with Turbo and Intercooler.

2.0 JTD 8v
Total displacement 1997 cm3
109 BHP-EEC at 4000 rpm
250Nm-EEC at 1750 rpm
“Common Rail” direct injection with Turbo and Intercooler.


specification:

features:

Central locking
Electric front windows
RDS ARI/EON audio system with AM/FM radio and cassette
Two speakers
Audio anti-theft protection: detachable panel
Antenna
Cloth seat upholstery
Bucket driver seat with height adjustment , bucket passenger seat
Steering wheel
Power steering
Glove compartment with lid
Front seats cup holders
Ventilation system
Driver internally electrically adjustable door mirrors with wide angle, passenger internally electrically adjustable door mirrors

external:

Front and rear steel wheels with 14 inch rim diam, 6in rim width and partial wheel covers
Front and rear tyres with 195 mm tyre width and 70% tire profile
Colour-coded front and rear bumpers

safety:

Ventilated front disc brakes
Immobilizer
Single conventional lens halogen bulb headlights
Headlight control with internal height adjustment
Center high mount stop light
Two height adjustable head restraints on front seats
Height adjustable 3-point reel front seat belts on driver seat and passenger seat with pre-tensioners
Windshield wipers with fixed intermittent wipe

technical specification:

Strut front suspension independent with stabilizer bar and coil springs , trailing arm rear suspension semi-independent with stabilizer bar and coil springs
Manual five-speed transmission


Fiat Scudo van
