INTELLIGENCE

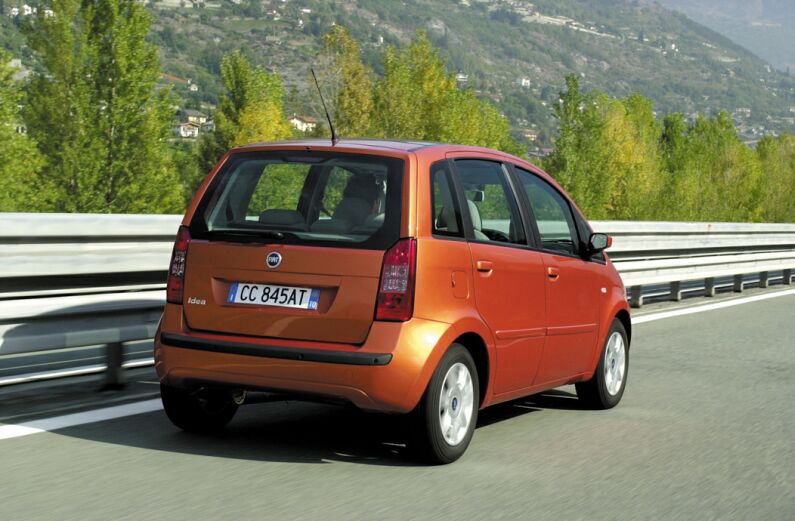

The Fiat Idea comes with four engines
(two petrol and two turbodiesel) that deliver a spirited performance but are
decidedly thrifty on fuel. This makes them a viable proposition for use in and
out of town.
So please meet the revolutionary 1.3
16v Multijet, the brisk 100 bhp 1.9 Multijet and the lively 95 bhp 1.4 16v Fire.
These veritable gems of automotive engineering are joined on the brand-new model
by the tried and tested 1.2 16v unit from the Fire family, now with revised
parts for improved performance.
All come with four cylinders and make up a product range able to satisfy the
most disparate needs. Common features include: flexibility, running economy and
respect for the environment. The engines are complemented by three five-speed
manual gearboxes and an advance robotised gearbox ('Dualogic') that can operate
in both sequential and automatic mode. The engines offered by the new model are
also particularly noiseless (due to exhaust systems with optimised arrangement
and configuration) and respectful of the environment (they meet Stage 3 and 4
EEC emission limits depending on the market).
All these winning features are the best
demonstration of our ability to build reliable, doughty and clean engines. This
universally accepted Fiat attribute has been amply demonstrated in the petrol
engine field, for example, by the 12 million and more Fire units produced since
1984. And now the diesel versions of the new model extend to a wider public the
benefits offered by second generation Multijet Common Rail turbodiesel engines:
i.e. an improved ratio between performance and fuel consumption and greater
respect for the environment.
The Multijet system proved to be the
breakthrough that really helped the Fiat Group to set a major new record in the
diesel engine field. But we had been putting in a lot of hard work behind the
scenes since 1988, the date that marked the arrival of the Croma TDI, the first
direct injection diesel vehicle in the world.
1.3 16v Multijet
The Fiat Idea range would not be complete without the 1.3 16v Multijet, the
smallest, most advanced of the second-generation Common Rail direct injection
diesels.
Fiat's designers created the engine by
taking all the engineering packed into the ultra-recent 140 bhp 1.9 Multijet
engine used on higher segment cars: for example, the high pressure Common Rail
device, multipoint injections, 16 valves, intercooler and a particularly
efficient combustion chamber shape. Then they added an intake system with
plastic manifold and directional ducts. Lastly, they reduced engine mass and
dimensions without detracting in any way from technical sophistication and
quality.
All in all, the 1.3 16v Multijet is a
true masterpiece of miniaturised technology: when clad with all its accessories,
it weighs in at just 130 kg. Its size is small at less than 50 centimetres in
length and 65 in height. The component layout has been designed to ensure it
takes up the smallest possible space. Yet it guarantees the same advantages as
bigger engines because it has not been reduced but miniaturised.
The power unit has thus been built to
ensure the greatest rationalism, efficiency and reliability and is the smallest
Common Rail four-cylinder diesel on the market. The only power unit that can
pack no fewer than six normal-sized components (namely four valves, an injector
and a glow plug) into a cylinder with a diameter of less than 70 mm. This major
feat of miniaturisation enables the engine to be fitted to segment B superminis
and even segment A city cars. But the new engine can also boast another record:
it is the most powerful.
Despite a truly miniscule cylinder capacity of 1251 cc, the pocket Multijet
comes out top when compared with all the small diesels with fixed geometry
turbines currently present on the market. Even the most vaunted. Suffice it to
say that it offers the best specific performance of any diesel engine with 800
to 1500 cc of cylinder capacity: a power output of 51 kW at 4000 rpm and torque
delivery of 18.3 kgm at just 1750 rpm.
This compact, technologically sophisticated new engine also offers outstanding
efficiency and is practically guaranteed for life. The 1.3 16v Multijet is
designed to last for 250,000 km instead of the usual 150,000.
During this long lifetime, it does not
require any maintenance to mechanical parts (and the fan belt need not be
changed slavishly at 80,000 km). The oil change intervals have also been
increased from 20 to 30,000 km. The oil is naturally low viscosity (i.e.
designed for fuel economy) and environmentally friendly.
Last but not least, the performance
figures for a Fiat Idea equipped with the 1.3 16v Multijet are outstanding: top
speed is 159 km/h while the car takes just 15.4 seconds to speed from 0 to 100
km/h and 36.6 seconds to cover a kilometre from a standing start. The fuel
consumption figures are also amongst the best in the segment: 6.2 l/100 km over
an urban cycle, 4.5 l/100 km over the extra-urban cycle and 5.1 l/100 km over
mixed routes.
The 1.3 16v Multijet therefore
represents a veritable technological leap that will allow Fiat to tap into
growing market interest for diesels, particularly small diesels. Due to their
cylinder capacity, low weight, low emissions and advantageous performance-fuel
consumption ratios, the diesel market share is growing sharply even in low
segments. The figure was 5% in 1997, nowadays it is 20% and over the next three
years it should rise to 30-40%.
These results mean that the market for
this type of engine should - if the estimates are correct - quickly rise to
1,500,000 units. Small Fiats equipped with the sophisticated 1.3 16v Multijet
engine could carve out a significant niche within this market. Because if it is
true that, as the history of diesel has taught us, the product drives the
market, Fiat is again in the vanguard of change and ready to introduce new
models to make the most of the change it helped to create.
The secret lies in the Multijet system
Until recently, the final frontier in diesel engines was power units with Unijet
Common Rail engineering. Despite their name, the engines make not one but two
injections of diesel into the combustion chamber: a small initial injection and
a bigger main injection. But all this has changed now, because the Fiat-GM
Powertrain engineers have developed second-generation common rail power units
that are Multijet, i.e. capable of more injections (3 to 5).
The engineering principle behind both systems is the same. Even in the Unijet
version, the pilot injection raises temperature and pressure inside the cylinder
to improve combustion at the time of the main stroke.
Because the main injection can now be
divided into many smaller injections, the amount of diesel burnt inside the
cylinder remains the same but the combustion is fuller and more gradual. This
allows further progress towards the aim of quieter combustion, reduced emissions
and increased performance.
Multijet Common Rail engines differ
from Unijet Common Rail engines in two essential parts: their injectors and
their electronic control unit. To increase the number of injections, we needed
injectors capable of reducing the time between one injection and the next - and
the gap was accordingly cut by one order of magnitude: from 1500 to 150
microseconds. Then the engineers had to reduce the minimum injected quantity:
from 2 to less than 1 mm3. We therefore needed a smarter control unit, i.e. a
unit able to continually change injection strategy to adjust to changes in three
parameters: engine rpm, torque required at any given moment by the driver and
coolant temperature.
While the new 1.3 16v Multijet is in
operation, the control unit continually adjusts injection arrangement and number
(as well as the amount of diesel injected). When coolant temperature is lower
than 60° and the torque requirement is low, two small and one large injection
are performed, very close together. As torque increases, the number of
injections drops to two: a small one and a large one. Under conditions of high
rpm and high torque demand, only one injection is performed. With coolant
temperature over 60°, things change again and to minimise emissions the
injection arrangement becomes: one small, one large, one small.
Benefits to the customer
As far as customers are concerned, the fact that all the engineering is packed
into the small 1.3 16v Multijet means a reduction in fuel consumption compared
to the present 1.9 JTD that amounts to some 10% for the same mass and weight.
The emission control reduction amounts to 50%. All this comes with:
- lower noise levels (if we imagine the cylinder
combustion to be like striking a drum: striking a small drum three times is
less noisy than striking a large drum once);
- greater comfort: fewer alternating masses means
fewer vibrations;
- smooth, gentle drive due to outstanding torque
progression (in turn guaranteed by the possibility of greater control of
combustion, moment by moment);
- the flexibility and prompt responses of a diesel
engine that resembles petrol engines more and more due to its wide rpm range
(e.g. you no longer feel the fuel cut-off at just over 4000 rpm);
- environmentally-friendly features that allow this
engine to improve on the greenest feature of a diesel (fuel consumption) by
minimising its main defect (particulate emissions).
100 bhp 1.9 Multijet
This engine is derived from the tried and tested 1.9 JTD 8 valve Common Rail
unit and takes the form of a 4 cylinder in line unit with bore of 82 millimetres
and stroke of 90.4 millimetres. The two valves per cylinder are driven directly
by an overhead camshaft. The new turbodiesel has undergone several engineering
changes to increase performance and engine torque at low speeds and to reduce
noise levels and vibrations.
For example, the Common Rail system used on the 100 bhp
1.9 Multijet unit includes two new strategies for automatically calibrating and
balancing the diesel injected to lower noise and reduce vibration. The
combustion chamber has also been optimised to improve thermodynamic efficiency
by reducing the compression ratio to 18:1.
Certain engine components are brand new: a cylinder
head with hydraulic tappets, steel connecting rods and crankshaft, a piston with
an internal channel to carry cooling oil to the main and connecting rod bearings
that are made out of different material to the previous unit. The exhaust and
intake manifolds are also new: the former is made out of a special high-strength
material while the latter is made out of die-cast aluminium. The
electronically-controlled EGR system is cooled by exhaust gas. The lubrication
circuit has a new oil pump and an external heat exchanger (air/oil) for cooling
the oil. The cooling system is fitted with a different water pump. This long
series of improvements and changes has created a reliable, powerful engine with
low fuel consumption.
The power units are turbocharged via a fixed geometry
IHI RHF4 MIX-FLOW turbocharger with electronically-controlled Waste Gate that
helps improve power delivery by allowing very high torque delivery even at low
rpms. Suffice it to say that 90% of maximum torque is available between 1750 and
3250 rpm. These data translate into great driving satisfaction and truly
inspiring performance.
The brand new 1.9 Multijet offers various benefits. The
engine is quieter as it warms up. The improvement can be quantified as a
reduction of 3 to 6 decibels depending on engine speed and environmental
temperature. Plus, great power (100 bhp at 4000 rpm), generous torque (26.4 kgm
at 1750 rpm) and a top speed of 179 km/h. A car equipped with this engine can
also accelerate from 0 to 100 km/h in 11.5 seconds and cover a kilometre from a
standing start in 33.0 seconds. Despite these searing performance figures, the
fuel consumption is low: 7.0 l/100 km over an urban cycle, 4.7 l/100 km for an
extra-urban cycle and 5.5 l/100 km over mixed routes. The new power unit also
reduces emissions even though it is not fitted with sophisticated exhaust gas
treatment devices.
The attributes of this second generation Common Rail
family are many though the underlying principles remain the same, i.e. high
injection pressure and electronic injector control. With one extra feature:
during each engine cycle, the number of injections increases over and above the
current number of two. In this way, the same amount of diesel is burnt inside
the cylinder but in several portions to achieve smoother combustion. The
advantages include lower running noise, reduced emissions and a 6-7% increase in
performance. All this comes with a level of engine efficiency that improves car
handling still further.
These results are not to be underestimated,
particularly because they are obtained with an engine that represents an
incredible leap forward from prechamber diesels and even improves on first
generation JTD engines. The secret of the Multijet engine lies in the control
unit that governs the electric injector opening and closure system (and also in
the injectors themselves). The crucial element is the electronic control unit
itself that can perform a set of injections that may be very closely spaced.
95 bhp 1.4 16v Fire
And so to the latest arrival in the Fire range - and also the highest performer.
The new engine offers a cylinder capacity of 1368 cc and a 4 cylinder in line
configuration with bore of 72 millimetres and stroke of 84 mm. The four valves
per cylinder are driven directly by a twin overhead camshaft.
The power unit was developed with particular attention
to performance and fuel consumption, an area where the Fiat Idea excels in its
category. This is due to the fact that volumetric efficiency has been optimised
throughout the service range due to painstaking fluid dynamic development
studies on the entire intake and timing system. The result is a power output of
70 kW (95 bhp) at 5800 rpm and a maximum torque of 13.0 kgm at 4500 rpm. A Fiat
Idea with this engine has a top speed exceeding 175 km/h, accelerates from 0 to
100 km/h in 11.5 seconds and covers one kilometre from a standing start in 33.0
seconds. The fuel consumption figures are amongst the best in the segment: 8.5
l/100 km over an urban cycle, 5.5 l/100 km for an extra-urban cycle and 6.6
l/100 km over mixed routes.
In other words, a vigorous yet frugal engine. This
performance is aided by an electronic throttle valve control system known as a
drive by wire system. Unlike the current production 16 valve unit, the 95 bhp
1.4 unit uses new engine control unit management software.
This torque-based system represents the cutting edge in
its field. Its strength lies in being able to manage all actions through a
single co-ordinator block that operates according to one basic parameter, i.e.
the driver's torque requirements expressed through the accelerator. When
translated into a physical torque value, these demands (including the demands of
external systems such as the ABS) may be coordinated even before the main engine
control parameters have been converted (advance, throttle position, injection
time etc.) with the huge benefit of meeting needs with extraordinary accuracy
and within a very short time period. Not to mention the fact that this system
exploits a single standard of communication between the various systems and
functions that all speak the lingua franca of drive torque. This allows a higher
level of handling than with current systems while also reducing polluting
emissions levels. The system also guarantees maximum integration with all the
other devices such as ESP and Cruise Control.
Another specific feature of the new 95 bhp 1.4 16v Fire
is the increase in compression ratio and the high torque values at low speeds,
qualities that have allowed fuel consumption to be kept low. This aim is also
achieved through the tuning of the cutting edge engine control system that
succeeds in cutting fuel consumption as far as possible while still maintaining
handling, performance and low emissions. As far as emissions are concerned, the
95 bhp 1.4 16v already meets Euro 4 legislative requirements. This is due to a
catalytic converter located in the engine compartment (and welded to the exhaust
emission manifold flange using a new method) that reaches high temperatures
within a shorter time period and thus reduces emissions even while the engine is
warming up. To minimise the environmental effect, the new engine is also
equipped with a returnless fuel system that eliminates fuel recirculation within
the tank and thus reduces vapour formation.
High-performing, thrifty and clean: the 95 bhp 1.4 16v
Fire unit backs these qualities with outstanding acoustic comfort. Firstly, a
barycentric power unit mounting system has been adopted to achieve reaction
forces with zero offset and thus minimise the transfer of engine vibrations to
the body. The acoustic comfort offered by the new engine is also enhanced by:
- an aluminium crankcase base with cast iron main
bearing caps cast together;
- the development of an aluminium oil sump that is
connected directly to the crankcase base and gearbox to increase the flexural
and torsional rigidity of the entire power unit and thus reduce vibrations;
- the use of a damper with setting specially adjusted
to damp vibrations with torsional resonance in the crankcase and flywheel
system;
- lastly, the adoption of an optimised piston skirt
profile on which is deposited (screen-printed) a molybdenum bisulphate coating
that allows piston/liner mating clearances to be pared to the minimum possible
during production. This reduces noise produced by secondary movement of the
piston in the cylinder (piston slap).
80 bhp 1.2 16v
The tried and tested 1242 cc Fire power unit makes its arrival on the Fiat Idea
after undergoing a whole series of refinements to make it a paragon of fuel
consumption thrift without affecting performance.
The 80 bhp 1.2 16v engine unit selected
for the Fiat Idea features a modified torque delivery curve (11.6 kgm at 4000
rpm) for an even more satisfying drive and good performance with better fuel
economy. The engine also benefits from all the improvements described for the
Fire 1.4 16v as far as the mechanicals, on-board electronics, exhaust system and
fuel system are concerned.
This power unit also features a
sophisticated piece of engineering not present on the 8 valve version. It takes
the form of an electronic throttle driven by the engine control unit, a
mechanism previously reserved for higher segment models. This device is
wire-driven, i.e. operated without any mechanical connections between
accelerator and throttle body. It leaves the electronic control unit the task of
delivering torque in accordance with the driver's varying requirements. This is
reflected in a top speed of 163 km/h and an acceleration figure of 0 to 100 km/h
in 13.5 seconds (it takes 35.0 seconds to cover a kilometre from a standing
start). The fuel consumption figures are also amongst the best in the segment:
6.5 l/100 km over a mixed cycle, 8.4 l/100 km for an urban cycle and 5.4 l/100
km over an extra-urban cycle.
A microhybrid electronic engine
management system makes a crucial contribution to enhancing the vigorous
temperament of the 1.2 16v engine. An aluminium crankcase base with linked main
bearing caps has also been developed to improve engine performance as far as
acoustics and vibrations are concerned.
Sophisticated, reliable gearboxes
The Fiat Idea comes with three types of five-speed gearbox to exploit the power
of the four engines to the full. The first is designed for the petrol engine
versions (1.2 16v and 1.4 16v), the second is fitted to 1.3 16v Multijet
versions while the third is paired with the 1.9 Multijet. The 1.4 16v and 1.3
16v Multijet can also be fitted with a sophisticated robotised gearbox that
allows automatic transmission control: the 'Dualogic'.
First the manual units. Though they
differ in terms of the maximum torque values they can handle (15 to 26 kgm), all
share a dual cable external control that filters engine running unevenness and
vibrations transmitted from the engine to the gearlever. The gear teeth offer
high meshing capacity while the fifth speed and final drive gear sets are
machined to a superfinish after heat treatment (for lower noise levels). Light
and very effective at absorbing noise, the gear cases are developed using finite
element structural computing methods.
The gear ratios are longer for good
fuel economy while the clutch control is hydraulic to assure - yet again - low
running noise, ease of use and efficiency.
Outstanding among the manual gearboxes
is the new five-speed Getrag. The unit is fitted to cars with the 100 bhp 1.9
Multijet engine and its strength and reliability are borne out by its ability to
withstand very high torques (26 kgm). The Fiat Idea 1.3 16v Multijet, on the
other hand, comes with a five-speed manual gearbox that transmits a torque of 21
kgm and features an external coupling. Both gearboxes were developed for higher
segment cars and achieve the highest levels of noiselessness and ease of
engagement.
The range concludes with a five-speed
version of our 15 kgm gearbox that equips the 1.2 16v and 1.4 16v power units.
The device differs from the previous version available on other Fiat models. It
now offers a fully redesigned internal differential with upgraded bevel gears
and box bolted to the ring gear. Gears made out of better quality metals have
been used to upgrade this version. The new gearbox also takes up little space
and its selection lever is outstandingly manoeuvrable. This has been achieved by
reducing clutch driven plate inertia and introducing new gaskets. The gearbox
configuration is transverse with two shafts in a cascade, while the gear
mechanism is internal over four selection planes. The device is also equipped
with a syringe device to prevent involuntary reverse engagement.
'Dualogic'
The 'Dualogic' device is available with the manual gearboxes combined with the
1.3 16v Multijet and 1.4 16v engines and features an innovative transmission
system. On this, an automatic servo device automates the clutch and gear lever
to retain all the attributes of a dry clutch and manual gearbox (weight,
strength and reliability, low energy consumption).
This sophisticated device improves the
performance of the manual mechanical transmission components while increasing
driving safety via a control system that stops the driver making mistakes and
prevents incorrect transmission system manoeuvres. Two operating modes are
available: semiautomatic and automatic.
The first adopts more advanced
control strategies to assure peak performance whether the power unit runs on
petrol or diesel. Speeds are engaged by means of a lever on the tunnel. Because
no clutch pedal is present, the device is controlled simply by moving the lever:
forward to change up (towards the + symbol), back to change down (toward the -
symbol). A simple push is sufficient to ensure the transmission makes a fast,
accurate gear change.
In detail, the 'Dualogic' transmission operates in semiautomatic mode as
follows. Electrical signals reach the control unit via the CAN (Controller Area
Network) and may be grouped in two main subsets. One set of data comes from the
gearbox area and identifies the position of shift, selection and clutch,
hydraulic kit service pressure and also clutch speed of rotation. The other set
consists of all the signals received from other Fiat Idea systems (e.g. engine
and brake system) that help define the gear change in a precise, repeatable
manner. The 'Dualogic' system uses these two groups of information to manage
comfortable or sports drive in manual or automatic mode and using different
operating strategies. It does this by mapping pedal position (interpreted as
performance requests as the values increase) and engine rpm.
Once the Fiat Idea has been started,
pressure on the brake pedal confirms to the system that the driver is present in
the driver's seat. First gear or reverse may then be engaged (the second may be
engaged to set off if the ground is slippery). To ensure safety and prevent
undesired gear changes, the system engages neutral when the engine is still
running and the door has been opened. The 'Dualogic' device also prevents errors
that could damage the engine or gearbox by indicating emergency situations or
manoeuvres that are not allowed by means of visual and acoustic alarms.
When in automatic mode, the 'Dualogic'
system offers two options: Normal and Economy. The Normal strategy offers
outstanding driving comfort to assure scintillating gearshifts under all
conditions. The Economy strategy is used when you wish to reduce fuel
consumption while still maintaining top level handling and driving comfort.
With both options, the system stretches
to a higher ratio once the rpm level has been reached, when the engine delivers
maximum torque or power. In automatic mode, the system recognises the road
gradient (by means of a software algorithm) and modifies the gear shift point to
ensure the best possible compromise between the driver's needs, ground
conditions and vehicle situation (speed and engine rpm) at all times. Another
specific feature of the 'Dualogic' is its ability to assess vehicle deceleration
and adjust downshifts. In semiautomatic mode, for example, the system allows
downshifts, particularly when the driver demands a lower gear to take a corner
at speed during a sporty drive. In automatic mode, the system anticipates the
downshift to ensure the driver can always call on the most appropriate speed to
maintain the required comfort level or fuel saving.
The 'Dualogic' is the best compromise
for those who prefer an automatic but do not wish to give up the satisfaction
and fun of a manual gearbox.
Sophisticated technology for maximum in-car wellbeing
The Fiat Idea boasts features that until now were exclusive to higher segment
cars. A trip on board the new model will reveal a passenger compartment that
satisfies in all situations and weathers. This has been achieved, in part, by a
generous and innovative sunroof and a sophisticated automatic dual zone climate
control system. And more. The original compact MPV offers state-of-the-art
automatic devices to make driving less of a chore: from Cruise Control to
Dualdrive electric power steering. Plus the new model allows you to light your
way home or the garage door without having to go back and turn off your
headlights. The Fiat Idea sets a whole new quality benchmark for cars in this
market band and also takes the quality of on-board life and travel up to a new
level.
Skydome sunroof
The Fiat Idea may be fitted with a large glass sunroof (Skydome) that represents
a first for this segment and offers a new way of experiencing car travel. The
latest-generation device occupies nearly 70 percent of the roof and consists of
two glazed panels (one fixed and one mobile) and two sunblinds that run
independently towards the rear of the car.
This system allows you to choose how
you wish to enjoy the outside world as you drive. The Fiat Idea can be converted
from a closed car to a car with a glass sunroof, a car with a conventional
sunroof or even a model with the feel of a cabriolet. Everything depends on the
outdoor temperature and the type of day. When you want to flood the passenger
compartment with light, you can close the glass part and open the underlying
blind.
If you'd rather travel in an
open-topped car, it takes just seven seconds to open the glass front panel and
blind fully to enjoy your very own window on the sky. Or you could decide to
open the front panel only partly. All you have to do is press the key on the
central courtesy light to move the front panel. In the first position, the glass
becomes a raised spoiler. When you continue to press the control, it takes up
intermediate positions by sliding back on aluminium guides. Simply release the
key to stop the movement in the required position. The same movements take place
in reverse during closure.
The Skydome also comes with an anti-obstruction system that reverses the motion
of the glass panel when it encounters an obstacle.
Automatic dual zone climate control system
Interior climate is one of the main comfort factors during a trip and is also
very important for interior safety because temperature, humidity and ventilation
affect the driver's well-being and thus his level of alertness. And of course
the heating and ventilation system is also responsible for demisting the
windscreen and side windows. This is why all versions of the Fiat Idea offer a
new, highly-efficient ventilation unit with recirculation facility and pollen
filter. Two types of climate control system are also available, according to the
version: the first is manual and the second is an automatic dual zone system.
The dual zone device automatically
controls temperature, air flow, air distribution, compressor activation and
recirculation by means of an electronic control unit. It also acts as a dual
zone climate control system, i.e. able to ensure two different temperatures
simultaneously: one in the right part of the passenger compartment and the other
in the left.
The quality of air reaching the inside
of the car is improved by a filter that traps particles measuring more than 0.5
microns and pollen (that could cause allergies).
The Fiat Idea also implements an
equivalent temperature climate control strategy. It records internal and
external temperature by means of certain sensors and assesses the sensation of
thermal well-being experienced by passengers, i.e. the energy exchange between
human body and passenger compartment that is affected by humidity, temperature
and treated air flow.
Another sensor located in a central
position at the windscreen base records solar radiation on the car and the angle
at which the rays strike the passenger compartment. This allows the system to
prevent an excessive increase in temperature inside the car caused by the sun
and thus to inform the climate control system in time.
All these parameters are monitored
continuously and used to update the distribution, ventilation and mixing
automatically. Air temperature and fan speed are therefore adjusted to ensure
passengers experience the desired sensation of thermal well-being (achieved by
setting the required temperature). The result is a constant climate, even with
significant changes in external conditions.
The system may be adjusted to one of
five set combinations to allow air taken into the car to reach all areas of the
passenger compartment.
- 'def', directs air only to the windscreen to demist
and defrost;
- 'vent', offers an immediate sensation of well-being
as the interior reaches the required temperature;
- 'floor', assures rapid heating;
- 'bi-level', directs warmer air from the floor
outlets and cooler air from the facia outlets;
- 'heat', ensures the passenger compartment is
properly heated and also prevents demisting.
The system offers three possible temperature settings:
- 'LO' (maximum cooling) that is activated when a
temperature setting of below 16.5°C is chosen. In this case, the system
ensures that the air distribution is directed to the front (vent position),
air flow is the maximum permitted by the device and the compressor is on
(recirculation is set by the user);
- 'HI' (maximum heating) becomes operational when the
temperature requirement is higher than 32.5°C. Air distribution is set to the
floor position; output is again as high as possible; the compressor is
controlled as required by the control unit and recirculation is left to the
motorist's discretion;
- 'MAX DEF' (fast defrost), essential in winter,
during periods of high rainfall and sometimes in spring and autumn; the
compressor comes on automatically to ensure air taken into the passenger
compartment is dehumidified and the windscreen and rear window are
demisted/defrosted quickly.
The possibility of altering interior temperature
gradually, half a degree at a time, makes for outstanding climatic comfort. The
knob can be used to bring about a temperature change of 16°C, with a maximum
temperature difference of 7 degrees between the left and right areas.
Manual adjustment is used for:
- setting interior temperature (right and left);
- voluntary changes to air flow distribution;
- fan speed (to alter air flow) and fan shut-off;
- compressor deactivation (in practice, the system
works as an automatic heater);
- the recirculation control;
- the 'MAX DEF' function for fast demist/defrost.
Manual choices always over-ride
automatic settings. They are also indicated by deactivation of the Full message
(Auto remains visible) and stored until the user cancels the command. Each time
the system is turned on, it returns to the conditions saved upon deactivation,
except for the 'MAX DEF' function, which is zeroed. The entire system can also
be turned off manually to fully deactivate the air conditioning system.
Cruise Control
Cruise Control is a system that helps motorists to manage vehicle speed and
improve travelling comfort. The device allows a cruising speed set by the driver
to be maintained automatically by governing the engine throttle directly. Simply
turn a wheel on a dedicated stalk to the left of the steering wheel to ON
position and then turn another one (actually a manual accelerator) towards the +
(or -) sign to achieve the required speed. When the ring is released, the car
continues to travel at the saved speed without the driver pressing the
accelerator pedal.
The Cruise Control system can work
within the entire range of rpm levels allowed by the engine, but only at speeds
over 40 km/h. It is therefore advisable to turn it on only if road conditions
allow the set value to be maintained in safety.
When the accelerator pedal is pressed
(during overtaking, for example), the Cruise Control system is temporarily
disabled even though the system stays on. The car therefore accelerates as
required, but the system automatically restores the car to the stored speed as
soon as the pedal is released. For obvious safety reasons, the device is
released automatically when the driver presses the brake or clutch pedal. In
this case, you can go back to the preset speed by pressing the RESUME button at
the end of the Cruise Control stalk.
Turn the wheel OFF and turn off the
engine to deactivate the Cruise Control finally and cancel all previous
settings. A warning light on the multifunctional display indicates system
operation or deactivation status.
The Anti Slip Regulation function takes
priority over automatic speed control: the system goes back to the set speed
when the ASR ceases to work.
Dualdrive electric power steering
This power-assisted steering system comes with two operating modes and uses the
power generated by an electric motor instead of power from a hydraulic pump
driven directly by the engine.
This device is just as revolutionary as
the alternator, electronic ignition and front wheel drive in their day and is
destined to bring about a considerable increase in energy saving, noiselessness,
reliability and respect for the environment while also significantly improving
the way we drive and enjoy our cars. As far as customers are concerned,
Dualdrive electric power steering represents the end of an age of compromises.
This is because, to date, designers
have always been forced to choose an average effort to be applied to the wheel
half-way between maximum steering lightness (best for parking) and a much
stiffer control effective at high speed (ensures better control). This occurred
because the power steering servo level is constant at any speed.
The steering response of the Fiat
Idea's electric steering system is, however, proportional to car speed: the
higher the speed, the lower the assistance and the stiffer the wheel response to
ensure greater driving precision.
The system adopted by the new model is
particularly innovative even for an electric power steering system and offers
customers one extra feature: i.e. a choice of two different setting programs.
The first ensures maximum empathy between driver and car and is ideal for mixed
out-of-town routes. The second lightens the steering to minimise effort and is
therefore ideal for driving round town and parking manoeuvres.
To turn on the latter, all you have to
do is turn on the city key in the middle of the facia. But fear not if you set
off down the motorway with the device in this position. To ensure customers
maximum safety in all cases, both programs offer the same degree of power
assistance over 70 km/h and therefore ensure a steering wheel response suited to
high speed.
The Fiat Idea's electric power steering
system is easy to use, satisfying and safe and also offers other advantages:
after cornering - for example - steering wheel return is controlled actively
with speed and damping adjusted to driving conditions.
These benefits can be perceived by
anyone entering a Fiat Idea for the first time while others become evident at a
later stage. First and foremost of these additional benefits, fuel saving.
Unlike a conventional power steering
system that requires the pump to be driven continually, the Dualdrive electric
power steering only takes up power when necessary, i.e. when the steering wheel
is turned. This results in a lower power requirement and a consequent fuel
saving of 3% over mixed routes. Equivalent to the effect of reducing car weight
by 50 kg.
Lower fuel consumption, therefore, and
also a more noiseless passenger compartment due to elimination of the noisy
hydraulic pump. On the environmental front, electric power steering helps reduce
emissions (as a direct consequence of the lower fuel consumption) but also
increases percentage recyclability of the device itself. Because the unit
contains no fluid or rubber to be disposed of, the figure of 85% for hydraulic
systems is increased to 95% for the electrical system.
The component is also highly reliable
because it works at a lower temperature than a hydraulic power steering system
and is not affected by possible impurities in circuit fluid.
The device, simple in concept but
difficult to build, is integral with the steering column and includes an
electronic control unit, an electric motor, a toothed coupling and a steering
wheel position and torque sensor.
The Dualdrive electric steering system
is also absolutely safe. If a fault occurs, a warning light comes on and the
Fiat Idea may be steered in the same way as any car with manual steering. For
safety reasons, the system will work only with the engine running.
Follow-me-home
Getting in and out of the Fiat Idea is easy even by night in poorly lit areas.
To simplify this operation, the new model is equipped with a delayed headlight
deactivation function (follow-me-home function).
The aim is to make the motorist's life
easier. The device keeps the dipped beams and side lights on for a while even
with the engine off and ignition key out. These few minutes are all you need to
see the garage door or garden gate in the dark. After this period, the
headlights go off - automatically of course.
The follow-me-home device is turned on
by operating the light flasher stalk within 2 minutes of turning off the engine.
Each time the stalk is operated, light activation is extended for 30 seconds up
to a maximum of three and a half minutes.
