12th October 2002

new models Ferrari 550 GTS Maranello


Prodrive Ferrari 550 GTS Maranello

UK based motorsport preparation company, Prodrive, have developed a GT racing version of Ferrari's road going tourer the 550 Maranello for use in the FIA GT Championship and similar rule US series'. Developed independently by Prodrive the project has now received some factory assistance.

The engine has been reworked by Prodrive with capacity increased to 6-litres from the original 5.5. Suspension, brakes and transmission have all been upgraded and the car, known by Prodive as a 550 GTS has a purpose race gearbox fitted. Extensive use of carbon-fibre panels has reduced the 550 GTS's weight to 1100kg.

After making its debut in the FIA GT Championship during this season, the 550 GTS took a pole position and race win, becoming one of the acknowledged front runners of the series. For 2002 Prodrive will be building customer versions and plan to take the car to Le Mans.


Prodrive Ferrari 550 GTS Maranello

technical specification:

chassis:
steel frame, aluminium roof and rear quarters, with all other bodywork panels in carbon fibre composite.

engine:
Prodrive-designed V12, based on Ferrari block. Dry sump, double overhead cam, 4 valves per cylinder. Front mounted. To comply with FIA GT regulations fitted with 2 x 32.9 mm air restrictors. Fuel tank capacity 100 litres.

power:
6 litre engine: Prodrive increased capacity from original 5500cc to 5983cc
max power: 600 bhp @ 7000 rpm
max torqueorque: 700 Nm
max rpm: 700 rpm
power to weight ratio: 550 bhp/ton
transmission:
Xtrac 6-speed H pattern gearbox longitudinally mounted on the rear axle. Rear wheel drive.
clutch: AP carbon 3-plate

suspension:
double wishbone front and rear. Adjustable front anti-roll bars and adjustable Koni dampers front and rear.

brakes:
front and rear – AP Racing with 6-pot calipers and 15” (375mm) vented carbon discs, brake balance adjustable by driver

wheels:
Prodrive-designed, OZ forged magnesium. Front 18” x 12”, rear 18” x 14”. Michelin tyres.

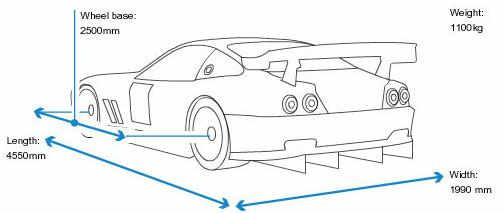

weight:
kerb weight: 1100kg.



Prodrive Ferrari 550 Maranello
Prodrive Ferrari 550 Maranello
