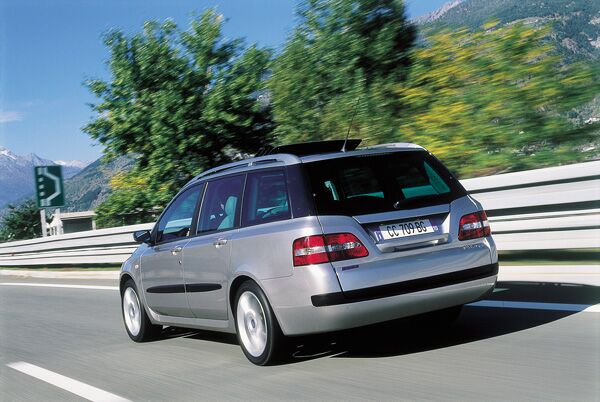

Fiat Stilo Multi Wagon

Fiat Stilo Multi Wagon

> introduction
> comfort & roominess
> engines, gearbox & suspension
> technical specifications
> safety
> innovative equipment & features
> style
> range
> standard equipment & optional extras
> body & fabric colours
> images
> cutaway diagrams
> the Stilo family
> pre-production prototypes


introduction

The new Fiat Stilo Multi Wagon aims to build on the current market fashion for "multi-purpose estate" models.

All the style and handling of a Station Wagon plus all the versatility and modularity of an MPV: configurable seats, opening rear window, an extremely comfortable driving position and greater ease of access. This happy marriage is made all the more attractive by an array of equipment and devices until recently the exclusive preserve of higher segment cars.

The new car is set to be one of the most comfortable cars in the segment at 4.51 metres long, 1.75 metres wide and 1.57 metres in height with a wheelbase of 2.60. A class-leading 510 litre luggage compartment that can be expanded to 1480 with the rear seats folded down.

The Fiat Stilo Multi Wagon is not just a family-oriented version of the Stilo. Fiat claim is a new way of seeing the car as a function of the uses it. The Multi Wagon is underpinned by the solid but dull traits of the Stilo 5-door version: comfort, roominess, safety, versatility and rationality - all for an overall running cost that is one of the most competitive in the segment and the market as a whole. Yet the style and content have been revised to create a totally new product with its own individual features.

The Stilo Multi Wagon is a self-avowed Multi Purpose Vehicle. It sits higher than 3- and 5-door versions. For example, the driver's seating plane in relation to the ground (H point) has been raised for greater ease of access and mastery of the road. It has been designed to make access as convenient as possible and it is also possible to adapt the interior space to the occupants own changing needs because the front seat folds down and the two rear seats can slide backwards and forwards and recline independently. A multifunction car that also offers the great benefit of more compact exterior dimensions. However Stilo Multi Wagon is also a Station Wagon through and through. Its shape and convenience conjure up an idea of travel, freedom of movement and journeys: be they long or short, for fun or work, with family or with friends.

The market welcomes the arrival of a car that plays the high-tech card and also offers highly innovative ideas and high quality standards. A car with so much it has everything. A quick glance at the standard equipment and options list will bear this out.

Above all, we are witnessing the arrival of a car that will augment the model range to meet a European demand that amounts to some 600,000 units per year in this segment.

style

The car gives an impression of sturdiness and solidity because its wide front end features a broad, protective bumper that conveys a perception of safety. This impression is reinforced by a waist-high muscle that ripples along the side of the car before dropping to the bumper and ending at the number plate.

The windows are tall and generous (the rear side windows and heated rear window are different colours) while the car's rear end visibly gains in width. This extra breadth is the car's great strength from the viewpoint of functionality and style. Its imposing rear bumper gives the car an impression of great solidity. This perception is borne out by the tailgate, which comes in two forms according to the specification: one with a lower moulding that tapers down to the bumpers and the other with an overhang instead of a moulded profile. The latter version makes for a highly practical tailgate: for example you can rest your suitcase or shopping bags on the small step so you can open the rear window more quickly. The other more moulded version is a pleasing, innovative aesthetic detail.

The low load threshold makes the luggage compartment more accessible than average, whether approached from the passenger compartment or from the rear. The boot lining is so regular that all the space can be exploited to the full. The tailgate can be opened with ease using a convenient central handle under the number-plate and it also comes with a brand new idea: a rear window that opens. Simply press a switch above the number plate lights to flick the rear window open. The following features make the Fiat Stilo Multi Wagon immediately recognisable and give it a greater sense of solidity: horizontal tail-lights and two-tone roof bars that drop from the front to the waistline.

The Fiat Stilo Multi Wagon also displays an attention to interior detail comparable to that of higher segment cars. Innovative design, material quality and a wealth of content are all aspects that help make the interior welcoming and comfortable while considerably improving the quality of life on board. Passenger compartment interior lines are harmonious and form a perfect counterpoint to the exterior shape.

Together with the oceans of glass, they create a bright environment and a perception of outstanding interior roominess. Everything is made still more comfortable and practical by numerous compartments distributed throughout the facia, console and door panels.

The control panel with its four analogue dials and multifunction displays blends in beautifully with the facia styling and underscores the car's up-to-date, high-tech nature. These characteristics are mirrored on the central console that houses the radio (or CONNECT system) and climate control system.

style >
engines

The new model offers a range of four power units: two petrol and two Common Rail turbodiesel that range from 59 to 98 kW (80-133 bhp) and display different attributes, all exploited to the full by the 5-speed gearboxes. The various benefits of these engines include high performance and sophisticated technology. All engines share common traits of great reliability and respect for the environment.

The 76 kW (103 bhp) 1.6 16v generates its maximum power output at 5750 rpm and maximum torque (145 Nm) at 4000 rpm. A Fiat Stilo Multi Wagon equipped with this engine can reach 183 km/h and accelerate from 0 to 100 km/h in 11.4 seconds. It consumes 7.6 l/100 km over a combined cycle.

The 1.8 16v develops a maximum power output of 98 kW (133 bhp) available at 6400 rpm and a torque of 162 Nm at 3500 rpm. This engine propels the Fiat Stilo Multi Wagon to 200 km/h and allows the car to accelerate from 0 to 100 km/h in less than 10.8 seconds. Fuel consumption over a combined cycle is 8.3 l/100 km.

The 80 bhp 1.9 JTD delivers 59 kW, available at just 4000 rpm, and a torque of 196 Nm at 1500 rpm. A Fiat Stilo Multi Wagon equipped with this engine offers a top speed of 170 km/h, accelerates from 0 to 100 km/h in 13.8 seconds and consumes 5.6 l/100 km over a combined cycle. The 115 bhp 1.9 JTD differs from the 80 bhp version in the presence of an intercooler and variable geometry turbine. It delivers a maximum power output of 85 bhp at 4000 rpm and offers a maximum torque of 255 Nm at 2000 rpm. In this case, the top speed achieved by the Fiat Stilo Multi Wagon is 190 km/h. It accelerates from 0 to 100 km/h in 11.2 seconds and consumes 5.6 l/100 km.

engines  & transmission >
suspension

The Fiat Stilo Multi Wagon suspension offers outstanding performance. The system ensures great driving ease and precision, outstanding roadholding and the best possible passenger comfort. The two efficient, tried and tested layouts used on the car work very effectively due to the attributes of the chassis.

The front features an independent MacPherson strut configuration refined through the adoption of numerous improvements. The rear end features an interconnected wheel suspension with torsion beam. This configuration offers passengers:

- great comfort because less noise and vibration is allowed into the passenger compartment;
- outstanding handling achieved by means of a folded sheet steel torsion beam that ensures ideal torsional rigidity for the suspension, plus an antiroll bar that is very light due to a hollow cross-section;
- excellent driving stability because hydraulic bushes attach the axle to the body and create a toe-in effect on bends.

suspension >
technology

The Stilo Multi Wagon sets new standards for equipment and high-tech features within its own market band and can sometimes even beat cars in higher segments. The net result is a car of substance designed to guarantee customers excellent performance in all fields, without cutting corners.

safety

On the passive safety front, the Fiat Stilo Multi Wagon offers 8 airbags, the front two being Multistage. As far as active safety is concerned, the car boasts four disc brakes and offers all the braking and traction control devices available on the market today. ABS complete with an electronic brakeforce distributor (EBD) ASR to limit wheel slip during acceleration and MSR to modulate brake torque while changing down. EVA and HBA devices, to help the driver brake fully during emergency stops. A sophisticated ESP to control car dynamic stability electronically on bends. The options list also includes Xenon headlights that offer significantly better visibility than conventional beams under all weather conditions.

safety >
material quality and opulence

The Fiat Stilo Multi Wagon gives you all this and fine interior finishes to offer everything you would expect from a car destined in many cases to become a family's main car. It offers many materials and manufacturing methods typical of higher segments: such as a slush moulding facia, burnished instrument and control surrounds and top-quality seat and panel upholstery materials borrowed from the home furnishing department.

telematics

CONNECT, an innovative on-line system that connects the driver to the extensive range of services offered by Targasys, will also be available on the Stilo Multi Wagon. The CONNECT service array is complemented by a Dual Band GSM phone with WAP internet access, GPS localisation and a navigation system in addition to a CD sound system that can also play MP3 music files. The system may be managed by voice commands and displayed on a 7" Wide Screen.

Technology at Man's service - The Fiat Stilo Multi Wagon makes its owners' lives simpler. When you enter a tunnel, the headlights will come on automatically under the action of a sensor. The first drops of a sudden shower will activate the windscreen wiper via a rain sensor. Parking manoeuvres are also made easier by a parking sensor. The driver can customise the operation of these and other systems via a My Car menu on the control panel.

telematics >
interior

The Fiat Stilo Multi Wagon also offers a brand new approach to interior outfitting and making use of the space allocated to passengers and luggage. This can be called a new generation interior without exaggeration because it packs all the practicality and flexibility of an MPV into a normal station wagon. This result is made possible by a sliding split rear seat that reclines and tilts independently. This makes the luggage compartment hugely versatile because it can offer a different load capacity and even a different shape as and when required.

This ability to adapt the rear end of the passenger compartment to passengers is the feature that assures maximum comfort to Fiat Stilo Multi Wagon occupants. And that applies to legroom and backrest position. Other assets include a ski tunnel, various closed storage compartments and a front seat that folds down to form a table to accommodate long loads or act as a work surface.

interior >
range

The options on offer from the Fiat Stilo Multi Wagon are created by combining four engines (1.6 16v - 1.8 16v - 1.9 JTD 80 bhp - 1.9 JTD 115 bhp), three specifications (Actual, Active and Dynamic), 7 body colours and 6 interior trim levels: 2 different cloth trims in grey or blue (Daniela for the Actual and Active, Doria for the Dynamic) and two leather trims in beige or anthracite. A range that Fiat hope will allows customers to find their own Fiat Stilo Multi Wagon. From a fully-equipped, safe car but without any particularly high-tech devices to a car with all the features currently available. Even those that were, until recently. The Fiat Stilo Multi Wagon is a car with a European spirit because of its ability to adapt to its more than 50 selling markets.

The Actual specification comes as standard with ABS + EBD, six airbags (2 are options), a Fiat CODE II antitheft system, head-restraints and three-point seat-belts on all seats, ISOFIX attachments for child seats and a pretension and load limiter for the front seats. Other standard features include Dualdrive electric power steering, height-adjustable driver's seat, provision for a radio with six speakers, My Car (car customisation), trip computer and a steering wheel with axial and height adjustment. Plus a heated/refrigerated glove box (when an air conditioner is present), central locking with deadlock and superlock functions, front windows with an anti-obstruction system and electric door mirrors which are painted the same shade as the body and are heated.

The Active specification offers certain extra features over and above those of the Actual. These change according to the market. In Italy, a radio and climate control system are fitted as standard. The Fiat Stilo Multi Wagon range is completed by the Dynamic specification that offers everything in the Actual package plus: lighted courtesy mirrors on the passenger side, storage compartment beneath the driver's seat, front armrest and body coloured exterior handles. Though these three specifications already offer a wealth of standard features, they can be further enhanced by a wide range of exclusive options: these include an electric segmented sunroof (Sky Window), CONNECT, dual zone climate control system and opening rear window.

range >
